One-Hole Compression Lug, 0.38 in Stud, Standard Barrel, Copper, None, 100 PK
Mfr # A1/0-38RF-C
Zoro # G904858308
product price:Â
$
549.99
/pk of 100, $5.50/ea
Free Shipping & Returns
Key Features
For Conductor Material
Copper
For Stud Size
0.38 in
Material
Copper
Barrel Size
Standard
Tongue Width
0.76 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- A1/0-38RF-C
- Zoro #
- G904858308
- UPC #
- 61305679312
- Country of Origin
- Mexico
Dimensions
- For Stud Size
- 0.38 in
- Barrel Size
- Standard
- Tongue Width
- 0.76 in
- Overall Length
- 1.4 in
- Outside Dia.
- 0.52
- Barrel Length
- 0.8
- Outer Diameter (mm)
- 13.27
- Tongue Width (In.)
- 0.76
- Overall Length (In.)
- 1.4
- Class K Copper Flex Conductor Size (AWG)
- 36526
- Tongue Thickness (In.)
- 0.12
- Stud Hole Size (mm)
- 9.5
- Inside Diameter (In.)
- 0.39
- Wire Strip Length (In.)
- 0.81
- Barrel Length (mm)
- 20.3
- Outer Diameter (In.)
- 0.52
- Barrel Length (In.)
- 0.8
- Inside Diameter (mm)
- 9.9
- Overall Length (mm)
- 35.6
- Stud Hole Size (In.)
- 0.38
- Wire Strip Length (mm)
- 4.8
- Tongue Thickness (mm)
- 3
- Tongue Width (mm)
- 19.3
Description

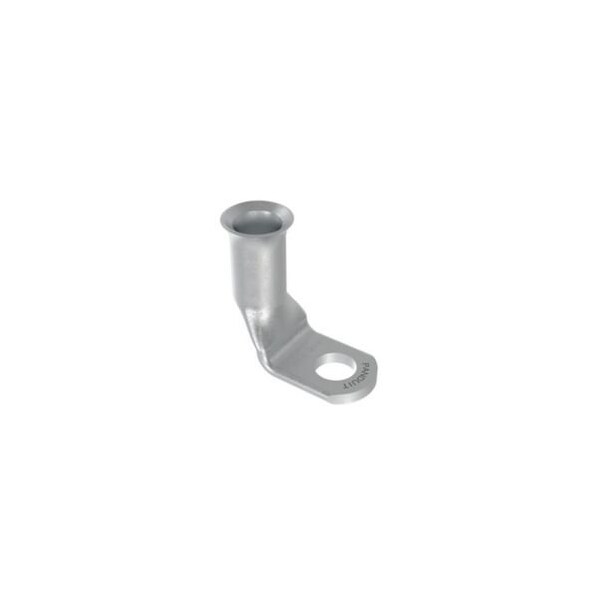

The A1/0-38RF-C Copper Compression Battery Cable Lug, 1/0 AWG, 3/8" Stud with a 90 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.
