  11. Lug Compression Connector, 350 kcmil Max, Standard Barrel, Copper, Red

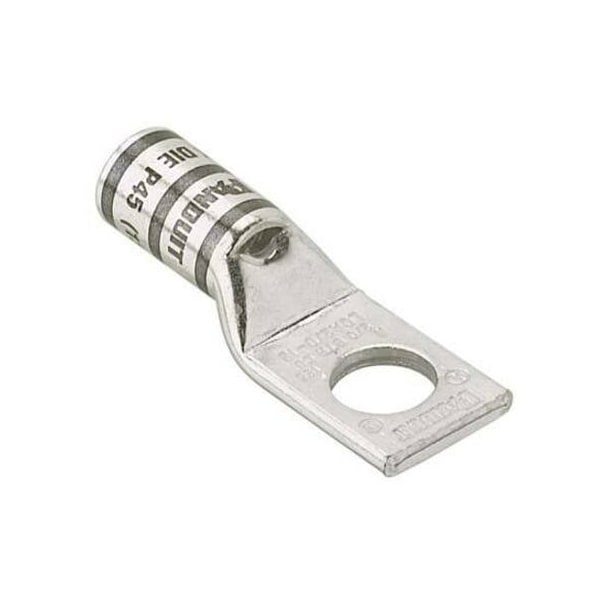

Panduit Lug Compression Connector, 350 kcmil Max, Standard Barrel, Copper, Red LCA350-38-X - main

Lug Compression Connector, 350 kcmil Max, Standard Barrel, Copper, Red

  • Mfr # LCA350-38-X

  • Zoro # G0771692

product price: $16.69
/ea

Key Features

Cable Size
350 kcmil
Connector Type
Standard Barrel
Width
1.28"
Material
Copper
Length
2.98"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA350-38-X
Zoro #
G0771692
UPC #
7498371938
Country of Origin
Mexico

Dimensions

Cable Size
350 kcmil
Width
1.28"
Length
2.98"
Overall Length
2.98 in
Barrel Length (In.)
1.44
Inside Diameter (In.)
0.7
Stud Hole Size (In.)
44993
Outer Diameter (In.)
0.88
Wire Strip Length (In.)
37257
Tongue Thickness (In.)
0.17
Copper Code Conductor Size (kcmil)
350
Barrel Length (mm)
36.6
Outer Diameter (mm)
22.35
Overall Length (mm)
75.7
Wire Strip Length (mm)
38.1
Stud Hole Size (mm)
9.5
Overall Length (In.)
2.98
Inside Diameter (mm)
17.78
Tongue Width (mm)
32.5
Tongue Thickness (mm)
4.3
Tongue Width (In.)
1.28
For Wire Size
350 kcmil
Tongue Width
1.28 in
Barrel Size
Standard

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Red
Item
Lug Compression Connector
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Die Code
18
Connection Type
1 x Terminal
Connection Material
Tin
Features
Corrosion Resistant, Angled Connector
Finish/Coating
Tin-Plated
Base Material
Copper
Product Type
Copper Compression Connectors - Lugs
Tongue Angle
Straight
Tongue Type
Standard
Lug Type
1 Stud Hole Lug
Panduit Die Index Number
P71
UL Temperature Rating (°C)
90
T & B Die Index Number
18
Maximum Voltage (kV)
35
Burndy Die Index Number
18
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Material
Copper
Connector Plating
Tin
Product Class
Lugs, Splices, Split Bolts & Accessories
For Conductor Material
Copper

Description

Lug Compression Connector,350 Kcmil

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
