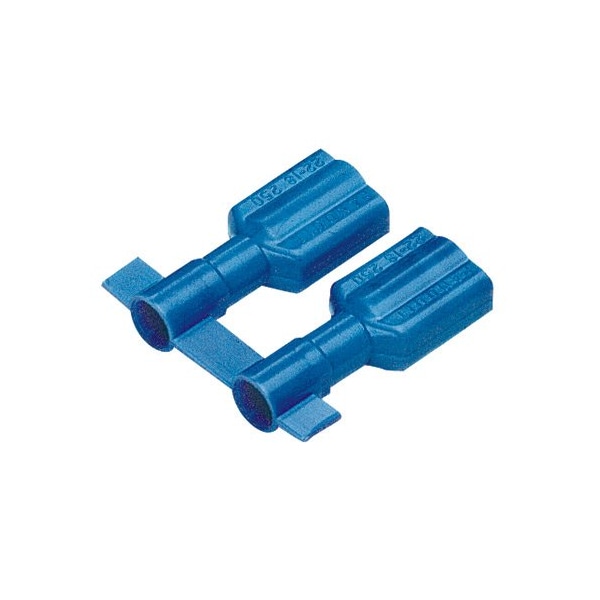

Female Disconnect, Prem Nyln fully Insul, DPF14-250FIB-3K, PK 3000

Mfr # DPF14-250FIB-3K
Zoro # G3036287

986.99

/pk of 3000, $0.33/ea

Free Shipping & Returns

Key Features

For Use With

Crimp press with CA9 (CD9-11A) or CA-800EZ (CD-800-11) applicator

Color Code

Blue

Insulation Type

Fully Insulated

Overall Length

0.84 in

Features

Strain Relief, Flame Retardant, Molded

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: DPF14-250FIB-3K
Zoro #: G3036287
UPC #: 7498382373
Country of Origin: Mexico

Dimensions

Overall Length: 0.84 in
Height: 0.22 in
Width: 0.4"
Overall Height (In.): 0.22
Minimum Wire Size (AWG): #16
Maximum Wire Insulation Diameter (mm): 4.06
Overall Width (In.): 0.35
Maximum Copper Conductor Size (AWG): #14
Overall Width (mm): 8.9
Tab Size (mm): 6.3 x 0.8
Wire Strip Length (In.): 11933
Tab Size (In.): 0.250 x 0.032
Maximum Wire Size (AWG): #14
Overall Height (mm): 5.6
Minimum Metric Conductor Size (mm²): 1.5
Maximum Wire Insulation Diameter (In.): 0.16
Overall Length (In.): 0.84
Overall Length (mm): 21.3
Maximum Metric Conductor Size (mm²): 2.5
Wire Strip Length (mm): 7.1

Details

For Use With: Crimp press with CA9 (CD9-11A) or CA-800EZ (CD-800-11) applicator
Color Code: Blue
Insulation Type: Fully Insulated
Features: Strain Relief, Flame Retardant, Molded
Finish: Tinned
Maximum Voltage (V): 600
Product Type: Disconnect
Finish/Coating: Tin-Plated
Maximum Voltage (kV): 0.6
Standards Met: UL 310, CSA 22.2 No.153
Base Material: Brass
Maximum Operating Temperature (°F): 221
Disconnect Type: Female Disconnect
Barrel Type: Funnel
Tongue Angle: Straight
Flammability Rating: UL94V-2/UL94-HB
Insulation Material: Premium Nylon
Maximum Operating Temperature (°C): 105
Contact Plating: Tin
Connector Details: 1 x Quick Disconnect
Product Name: Terminal Connector
Product Color: Blue
Product Class: Disconnects
Max Operating Temperature: 105 degrees celsius

Description

Female Disconnect, premium nylon fully insulated, 16 - 14 AWG, .250 x .032 tab size
