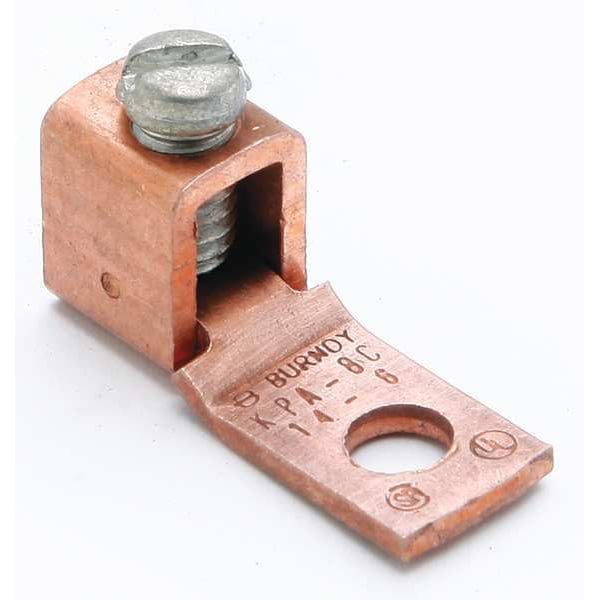

Mechanical Lug, 6 AWG Max, 1 Conductor, 1 Hole, #10 Stud, Copper
Mfr # KPA8CUP
Zoro # G4701986
product price:Â
$
3.65
/ea
Key Features
Connector Type
Terminal
For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
6 AWG
Number of Conductors
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KPA8CUP
- Zoro #
- G4701986
- UPC #
- 781810554050
- Country of Origin
- India
Dimensions
- For Minimum Wire Size
- 14 AWG
- For Maximum Wire Size
- 6 AWG
- For Stud Size
- #10
- Hole Diameter
- 0.20 in
- Tongue Width
- 0.38 in
- Stud Size
- #10
- Max. Conductor Size
- 6 AWG Stranded/Solid
- Min. Conductor Size
- 14 AWG Stranded/Solid
- Width
- 0.81 in
- Length
- 1.04 in
- Length (Straight Wireway)
- 1.04 in
- Tongue Length
- 0.56 in
- Overall Length
- 1.04 in
- Overall Width
- 0.81 in
- Overall Depth
- 3/8 in
- For Stranded Copper Wire Size - Minimum
- 14 AWG
- Tongue Thickness
- 0.07 in
- Strip Length
- 15/32 in
- For Stranded Copper Wire Size - Maximum
- 6 AWG
- Conductor Size
- 14-8 AWG
- Dimension - Pad Width inch
- 0.38 in
- Dimension - Hole Size inch
- 0.20 in
- Dimension - Bolt Size fraction
- #10
- Dimension - L Length Overall mm
- 26 mm
- Dimension - Stud Size inch
- #10
- Conductor - Copper Str Size
- 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG
- Dimension - Length Overall inch
- 1.04 in
- Dimension - Width inch
- 0.38 in
- Conductor - Copper Str Size Range
- 14 AWG-6 AWG
- Dimension - D inch
- 0.56 in
- Dimension - Width mm
- 10 mm
- Dimension - Hole Size mm
- 5 mm
- Dimension - Height fraction
- 64/79 in
- Dimension - N inch
- 0.22 in
- Conductor - Copper Solid Size
- 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG
- Conductor - Copper Solid Size Range
- 14 AWG-6 AWG
- Dimension - Strip Length inch
- 15/32
- Dimension - Height inch
- 0.81 in
- Wire Rope Length
- 1.04 in
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, For Stud Size #10, Head Style Slotted, Number of Holes 1, Hole Diameter 0.2 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.56 in, Tongue Width 0.38 in, Tongue Thickness 0.07 in, Connector Type Terminal
