Shop PANDUIT

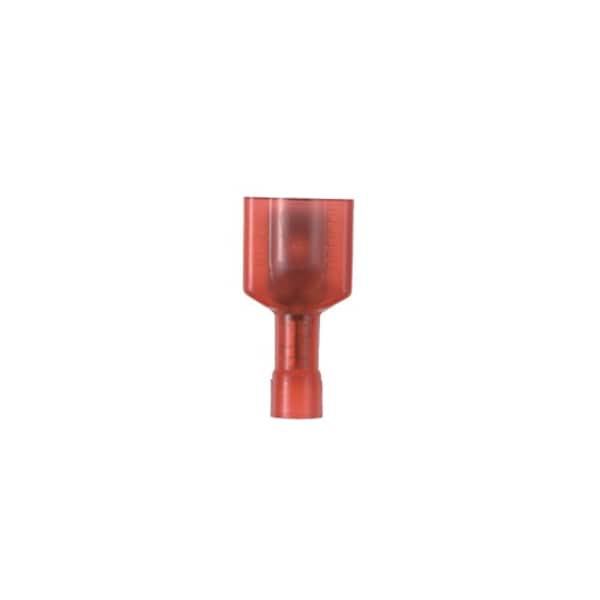

Male Disconnect, Nylon, 22-18AWG, PK50

  • Mfr # DNF18-250FIMB-L

  • Zoro # G0765681

product price:  $51.49
/pk 50, $1.03/ea

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Fully Insulated
Overall Length
0.91 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF18-250FIMB-L
Zoro #
G0765681
UPC #
7498382419
Country of Origin
Mexico

Dimensions

Overall Length
0.91 in
Height
0.34 in
Width
0.5"
Minimum Wire Size (AWG)
#22
Tab Size (In.)
0.250 x 0.032
Overall Width (In.)
0.45
Minimum Copper Conductor Size (AWG)
#22
Overall Length (In.)
0.91
Tab Size (mm)
6.3 x 0.8
Maximum Wire Insulation Diameter (mm)
3.4
Insulation Diameter (In.)
0.13
Maximum Wire Size (AWG)
#18
Wire Strip Length (In.)
11933
Minimum Metric Conductor Size (mm²)
0.5
Maximum Wire Insulation Diameter (In.)
0.14
Overall Width (mm)
11.4
Maximum Metric Conductor Size (mm²)
1
Wire Strip Length (mm)
7.1
Overall Length (mm)
23.1
Insulation Diameter (mm)
3.4
Maximum Copper Conductor Size (AWG)
#18

Details

Item
Male Disconnect,Nylon,22-18AWG,PK50
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Fully Insulated
Features
Flame Retardant
Maximum Voltage (V)
600
Disconnect Type
Male Tab Disconnect
Barrel Type
Standard
Maximum Operating Temperature (°C)
105
Insulation Material
Nylon
Base Material
Brass
Maximum Voltage (kV)
0.6
Finish/Coating
Nickel-Plated
Maximum Operating Temperature (°F)
221
Flammability Rating
UL94-HB
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Tongue Angle
Straight
Product Type
Disconnect
Seam Type
Butted
Connector Details
1 x Quick Disconnect
Product Material
Brass
Product Name
Terminal Connector
Product Color
Red
Contact Plating
Nickel
Product Class
Disconnects
Max Operating Temperature
105 degrees celsius

Description

Male Disconnect,Nylon,22-18AWG,Package Quantity 50

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
