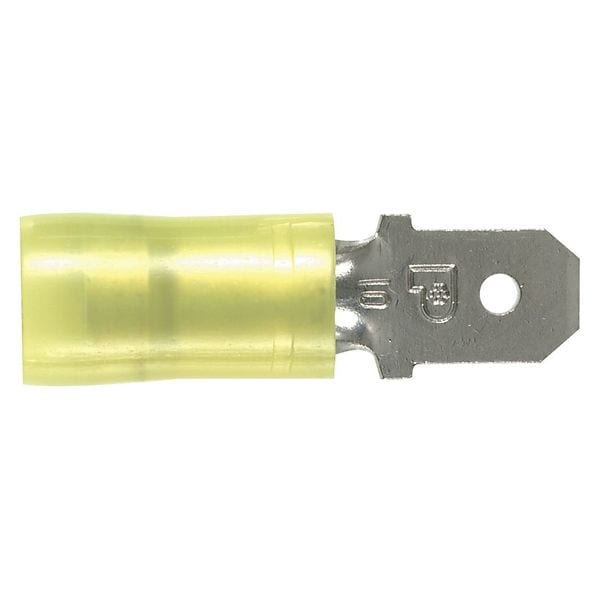

Male Disconnect, Yellow, 12-10AWG, PK50
Mfr # DNF10-250M-L
Zoro # G0159227
product price: $67.19
/pk 50, $1.34/eaKey Features
Insulation
Partial
For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Insulation Color
Yellow
Color Code
Yellow
Insulation Type
Nylon
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DNF10-250M-L
Zoro #
G0159227
UPC #
074983827718
Country of Origin
Mexico
Dimensions
Tab Size
0.032 in x 0.250 in
Overall Length
1.03 in
Barrel Inside Dia.
0.125 in
Width
0.3"
Tab Thickness
0.032 in
Barrel Size
Standard
Barrel Inside Diameter
0.125 in
Tab Width
0.25 in
Maximum Wire Size
10 AWG
Strip Length
1/4 in
Minimum Wire Size
12 AWG
Maximum Wire Insulation Diameter (In.)
0.23
Minimum Metric Conductor Size (mm²)
4
Minimum Wire Size (AWG)
#12
Tab Size (In.)
0.250 x 0.032
Overall Thickness (mm)
8.1
Overall Width (mm)
6.4
Overall Length (mm)
26.2
Wire Strip Length (mm)
7.1
Wire Strip Length (In.)
11933
Insulation Diameter (mm)
5.8
Overall Thickness (In.)
0.03
Maximum Metric Conductor Size (mm²)
6
Maximum Wire Insulation Diameter (mm)
5.8
Minimum Copper Conductor Size (AWG)
#12
Overall Length (In.)
1.03
Maximum Copper Conductor Size (AWG)
#10
Insulation Diameter (In.)
0.23
Tab Size (mm)
6.3 x 0.8
Maximum Wire Size (AWG)
#10
Overall Width (In.)
0.25
Description
Wire Disconnect, Contact Finish Nickel, Contact Material Copper, Disconnect Style Quick Disconnect, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Temperature 221 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, UL 94 Flammability Rating HB, V-2, RoHS Compliant Yes, Seam Style Seamless
