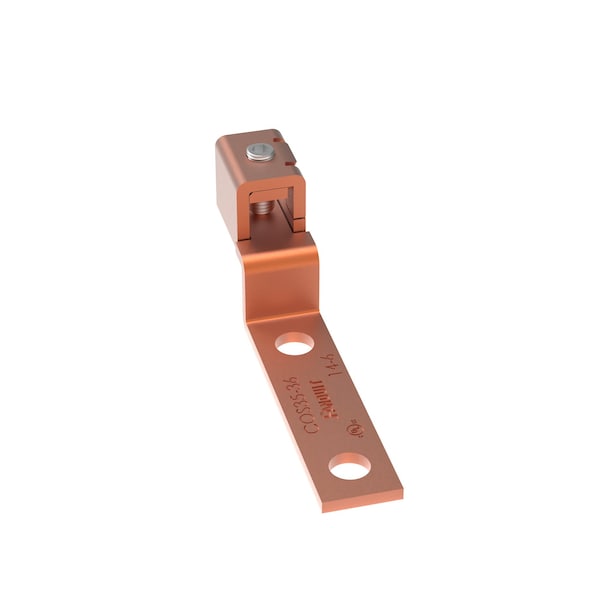

Mechanical Lug, 6 AWG Max, 2 Hole, Copper

  • Mfr # COS35-36-Q
  • Zoro # G304858977
product price:
$
3.15
/ea
Sold in multiples of 3 for $9.45

Key Features

For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
6 AWG
Number of Holes
2
Tongue Width
1.46 inches; 37.1 millimeters
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
COS35-36-Q
Zoro #
G304858977
UPC #
61305626073
Country of Origin
Mexico

Dimensions

For Minimum Wire Size
14 AWG
For Maximum Wire Size
6 AWG
Tongue Width
1.46 inches; 37.1 millimeters
Width
0.39 in
Wire Size
6
Stud Size
44636
Overall Width
0.39
Overall Length
2.23 in
Overall Height
0.55
Height
0.55 in
Barrel Length (In.)
0.47
Overall Height (In.)
0.55
Overall Width (In.)
0.39
Tongue Thickness (In.)
0.06
Overall Height (mm)
14
Overall Length (mm)
56.6
Tongue Thickness (mm)
1.5
Overall Length (In.)
2.23
Stud Hole Size (mm)
4.8
Hex Size (mm)
2
Barrel Length (mm)
11.9
Maximum Copper Conductor Size (AWG STR)
6
Overall Width (mm)
9.9
Minimum Copper Conductor Size (AWG STR)
14

Details

Item
Mechanical Lug
For Conductor Material
Copper
Number of Holes
2
Body Material
Copper
Contact Finish
Bare
Maximum Voltage
600V
Maximum Operating Temperature
90 Degrees C
Standards
cULus Listed for use up to 600V & Temperature Rated to 90°C
No. of Holes
2
Material
Copper
Type
Mechanical Connectors-Lugs
Material of Construction
Copper
UL Temperature Rating (°C)
90
Finish/Coating
Bare
Stud Hole Spacing (mm)
25.4
Barrel Type
Single Barrel
Product Type
Mechanical Connectors-Lugs
Stud Hole Spacing (In.)
1
Tongue Type
Offset Floating Tongue

Description

The COS35-36-Q Mechanical Connector Lug two-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel set screw provides a durable electrical contract between conductor and connector. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.
