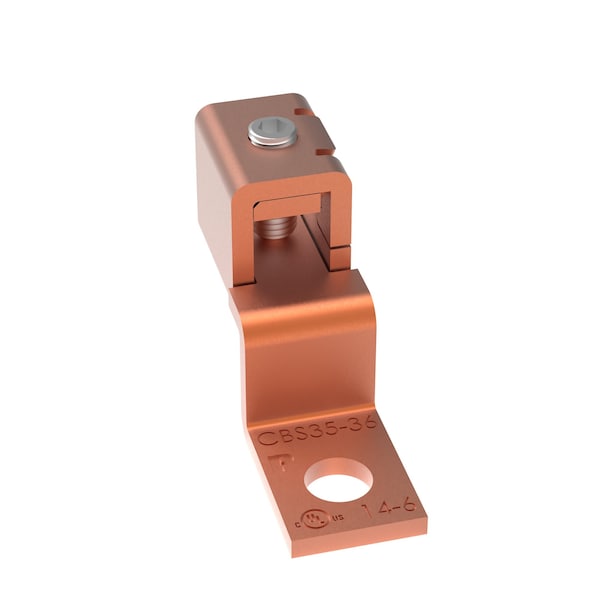

Mechanical Lug, 6 AWG Max, 1 Hole, Copper

  • Mfr # CBS35-36-C

  • Zoro # G604859773

product price:  $3.29
/ea
Sold in multiples of 3 for $9.87

Key Features

For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
6 AWG
Number of Holes
1
Tongue Width
0.52 inches; 13.2 millimeters
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CBS35-36-C
Zoro #
G604859773
UPC #
61305626068
Country of Origin
Mexico

Dimensions

For Minimum Wire Size
14 AWG
For Maximum Wire Size
6 AWG
Tongue Width
0.52 inches; 13.2 millimeters
Wire Size
6
Stud Size
44636
Width
0.39 in
Height
0.55 in
Overall Height
0.55
Overall Width
0.39
Overall Length
1.29 in
Minimum Copper Conductor Size (AWG STR)
14
Maximum Copper Conductor Size (AWG STR)
6
Tongue Thickness (In.)
0.06
Overall Length (In.)
1.29
Barrel Length (mm)
11.9
Overall Width (In.)
0.39
Overall Width (mm)
9.9
Overall Height (In.)
0.55
Tongue Thickness (mm)
1.5
Overall Height (mm)
14
Barrel Length (In.)
0.47
Overall Length (mm)
32.8
Hex Size (mm)
2
Stud Hole Size (mm)
4.8

Details

Item
Mechanical Lug
For Conductor Material
Copper
Number of Holes
1
Body Material
Copper
Contact Finish
Bare
Maximum Voltage
600 V
Maximum Operating Temperature
90 deg C
Standards
cULus Listed for use up to 600V & Temperature Rated to 90°C
Type
Mechanical Connectors-Lugs
No. of Holes
1
Material
Copper
Material of Construction
Copper
Barrel Type
Single Barrel
Finish/Coating
Bare
Tongue Type
Offset Floating Tongue
UL Temperature Rating (°C)
90
Product Type
Mechanical Connectors - Lug

Description

The CBS35-36-C Mechanical Cable Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel set screw provides a durable electrical contract between conductor and connector. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.
