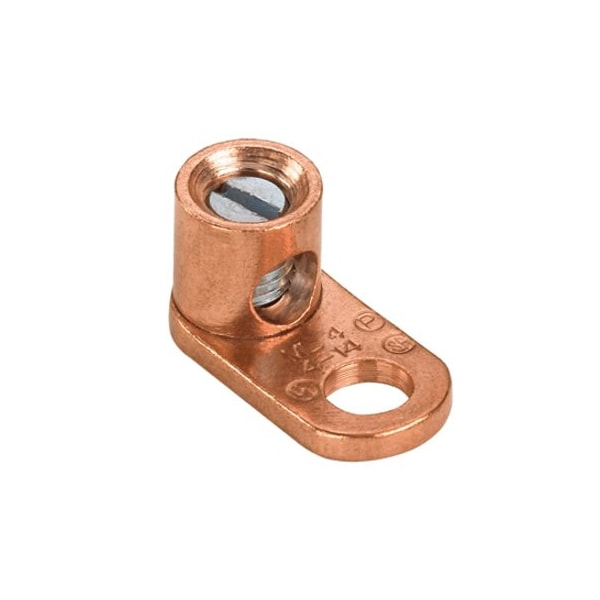

Mechanical Lug, 1/0 AWG Max, 1 Conductor, 1 Hole, Copper
- Mfr # ML1/0-LY
- Zoro # G0778753
product price:Â
$
7.19
/ea
Key Features
For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
1/0 AWG
Number of Conductors
1
Number of Terminations
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ML1/0-LY
- Zoro #
- G0778753
- UPC #
- 7498359624
- Country of Origin
- India
- Item
- Mechanical Lug
- For Conductor Material
- Copper
- Number of Conductors
- 1
- Number of Terminations
- 1
- Number of Holes
- 1
- Body Material
- Copper
- Contact Finish
- Bare
- Maximum Voltage
- 600V
- Maximum Operating Temperature
- 194 Degrees F
- Standards
- cULus
- Application
- Copper Code Conductor
- Tongue Type
- Straight Tongue
- Product Type
- Mechanical Connectors - Lug
- Barrel Type
- Single Barrel
- UL Temperature Rating (°C)
- 90
- Tongue Angle
- Straight
- Product Name
- Terminal Connector
- Product Material
- Copper
- Product Class
- Mechanical Lugs
Dimensions
- For Minimum Wire Size
- 14 AWG
- For Maximum Wire Size
- 1/0 AWG
- Tongue Width
- 0.73 in
- Height
- 0.79 in
- Overall Length
- 1.54 in
- Overall Width (mm)
- 18.5
- Overall Length (In.)
- 1.57
- Tongue Thickness (mm)
- 2.2
- Minimum Copper Conductor Size (AWG STR)
- 14
- Stud Hole Size (In.)
- 45062
- Overall Height (In.)
- 0.79
- Maximum Copper Conductor Size (AWG STR)
- 36526
- Minimum Copper Conductor Size (AWG SOL)
- 14
- Overall Height (mm)
- 20
- Hex Size (mm)
- 6.35
- Tongue Thickness (In.)
- 0.09
- Hex Size (In.)
- 44930
- Overall Length (mm)
- 39.8
- Overall Width (In.)
- 0.73
- Tongue Length
- 0.80 in
Description
Mechanical Connector,8 SOL-1/0 AWG
