  11. One-Hole Compression Lug, 1 to 2 in Stud, Standard Barrel, Copper, Green

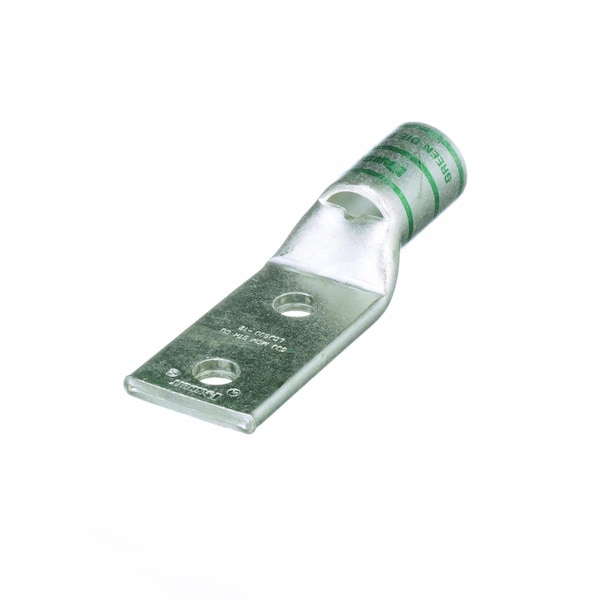

Panduit One-Hole Compression Lug, 1 to 2 in Stud, Standard Barrel, Copper, Green LCD600-12-6 - main

One-Hole Compression Lug, 1 to 2 in Stud, Standard Barrel, Copper, Green

  • Mfr # LCD600-12-6

  • Zoro # G2795338

product price: $63.99
/ea

Key Features

For Conductor Material
Copper
For Stud Size
1 to 2 in
Material
Copper
Barrel Size
Standard
Tongue Width
1.70 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCD600-12-6
Zoro #
G2795338
UPC #
7498390108
Country of Origin
Mexico

Dimensions

For Stud Size
1 to 2 in
Barrel Size
Standard
Tongue Width
1.70 in
Length
5.4"
Overall Length
5.42 in
Overall Length (mm)
137.7
Tongue Thickness (mm)
6.6
Stud Hole Size (In.)
1 to 2
Barrel Length (In.)
1.75
Wire Strip Length (In.)
1.81
Tongue Width (In.)
1.7
Barrel Length (mm)
44.5
Tongue Width (mm)
43.2
Tongue Thickness (In.)
0.26
Overall Length (In.)
5.42
Copper Code Conductor Size (kcmil)
600
Stud Hole Size (mm)
12.7
Wire Strip Length (mm)
46

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Die Code
22
Color Code
Green
Features
Corrosion Resistant
Burndy Die Index Number
22
Stud Hole Spacing (In.)
1.75
Finish/Coating
Tin-Plated
Stud Hole Spacing (mm)
44.5
Tongue Type
Standard
Maximum Voltage (kV)
35
Panduit Die Index Number
P94
Base Material
Copper
Product Type
Copper Compression Connectors - Lugs
UL Temperature Rating (°C)
90
Connector Plating
Tin
Product Material
Copper
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Class
Mechanical & Compression Lugs & Splices
Number of Holes
1

Description

Copper Compression Lug, 2 Hole, 600 kcmil, 1/2 (12.7mm) Stud, 1.75 (44.4mm) Hole Spacing
