  11. One-Hole Compression Lug, 1/0 AWG Max, Standard Barrel, Copper, Pink

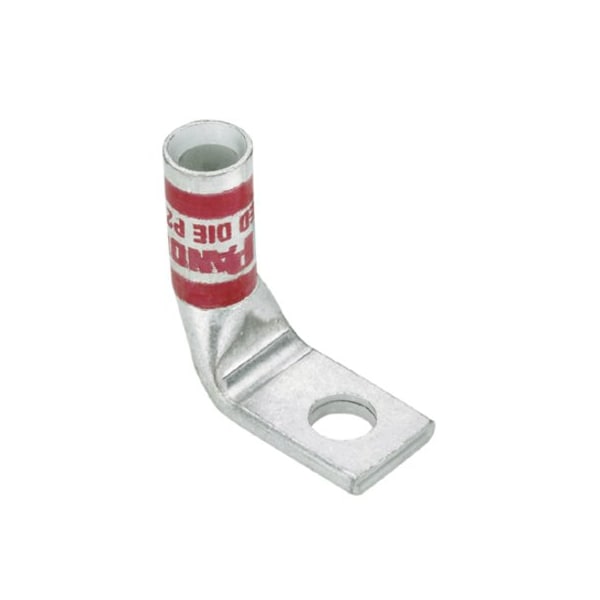

Panduit One-Hole Compression Lug, 1/0 AWG Max, Standard Barrel, Copper, Pink LCA1/0-14F-X - main

One-Hole Compression Lug, 1/0 AWG Max, Standard Barrel, Copper, Pink

  • Mfr # LCA1/0-14F-X

  • Zoro # G0771248

product price: $10.29
/ea

Key Features

Cable Size
1/0 AWG
Connector Type
Standard Barrel
Width
0.76"
Material
Copper
Length
1.45"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA1/0-14F-X
Zoro #
G0771248
UPC #
7498355918
Country of Origin
Mexico

Dimensions

Cable Size
1/0 AWG
Width
0.76"
Length
1.45"
Overall Length
1.45 in
Wire Strip Length (mm)
25.4
Overall Length (mm)
36.8
Stud Hole Size (mm)
6.4
Tongue Thickness (mm)
3
Tongue Thickness (In.)
0.12
Overall Length (In.)
1.45
Tongue Width (mm)
19.3
Barrel Length (In.)
0.94
Tongue Width (In.)
0.76
Barrel Length (mm)
23.9
Copper Code Conductor Size (AWG)
36526
Wire Strip Length (In.)
1
Stud Hole Size (In.)
44930
Barrel Size
Standard
Tongue Width
0.76 in
For Wire Size
1/0 AWG

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Pink
Item
One-Hole Compression Lug
Die Code
12
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Features
Corrosion Resistant, 90° Angled Connector
Maximum Voltage (kV)
35
Tongue Type
Standard
Product Type
Copper Compression Connectors - Lugs
UL Temperature Rating (°C)
90
Panduit Die Index Number
P42
Tongue Angle
90 Degrees Angled
Base Material
Copper
Burndy Die Index Number
12
Finish/Coating
Tin-Plated
Product Material
Copper
Product Name
Terminal Connector
Connector Plating
Tin
Connector Details
1 x Terminal
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,1/0 AWG
