  11. One-Hole Compression Lug, 1/0 AWG Max, Standard Barrel, Copper, Pink

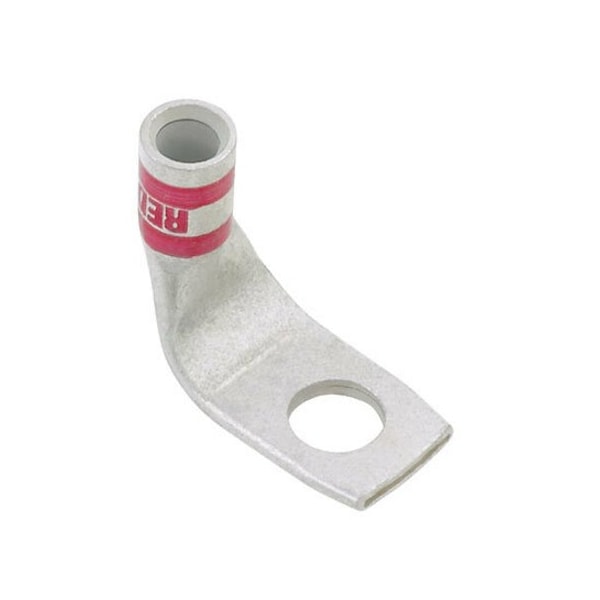

Panduit One-Hole Compression Lug, 1/0 AWG Max, Standard Barrel, Copper, Pink LCAX1/0-38F-X - main

One-Hole Compression Lug, 1/0 AWG Max, Standard Barrel, Copper, Pink

  • Mfr # LCAX1/0-38F-X

  • Zoro # G0773628

product price: $11.45
/ea

Key Features

Cable Size
1/0 AWG
Connector Type
Standard Barrel
Width
0.85"
Material
Copper
Length
1.66"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCAX1/0-38F-X
Zoro #
G0773628
UPC #
7498343529
Country of Origin
Mexico

Dimensions

Cable Size
1/0 AWG
Width
0.85"
Length
1.66"
Overall Length
1.66 in
Wire Strip Length (mm)
19.1
Barrel Length (mm)
18.3
Tongue Width (In.)
0.85
Overall Length (In.)
1.66
Stud Hole Size (mm)
9.5
Tongue Thickness (mm)
3.3
Tongue Width (mm)
21.6
Copper Code Conductor Size (AWG)
36526
Stud Hole Size (In.)
44993
Overall Length (mm)
42.2
Barrel Length (In.)
0.72
Tongue Thickness (In.)
0.13
Barrel Size
Standard
For Wire Size
1/0 AWG
Tongue Width
0.85 in

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Pink
Item
One-Hole Compression Lug
Die Code
12
Connection Material
Tin
Connection Type
1 x Terminal
Features
90° Angled Connector, Corrosion Resistant
Product Type
Copper Compression Connectors - Lugs
Maximum Voltage (kV)
35
UL Temperature Rating (°C)
90
Base Material
Copper
Tongue Type
Standard
Burndy Die Index Number
12
Tongue Angle
90 Degrees Angled
Finish/Coating
Tin-Plated
Panduit Die Index Number
P42
Connector Details
1 x Terminal
Connector Plating
Tin
Product Material
Copper
Product Name
Terminal Connector
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,1/0 AWG
