  6. One-Hole Compression Lug, 3/0 AWG Max, Standard Barrel, Copper, Orange

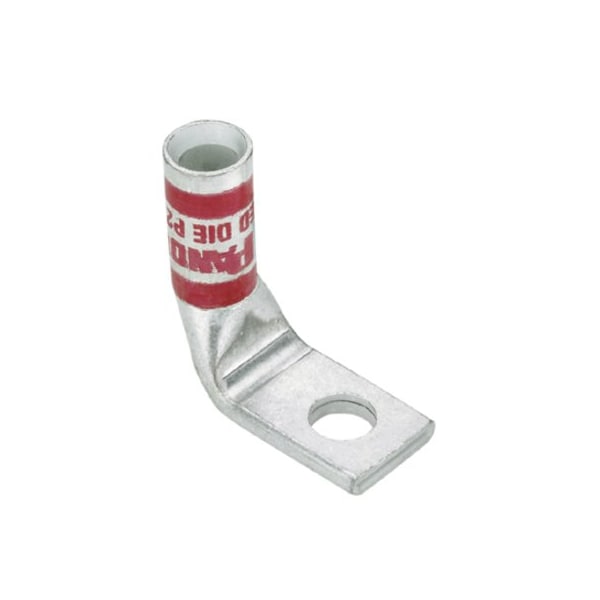

Panduit One-Hole Compression Lug, 3/0 AWG Max, Standard Barrel, Copper, Orange LCA3/0-38F-X - main

One-Hole Compression Lug, 3/0 AWG Max, Standard Barrel, Copper, Orange

  • Mfr # LCA3/0-38F-X

  • Zoro # G0771920

product price:  $12.69
/ea

Key Features

For Wire Size
3/0 AWG
For Conductor Material
Copper
Material
Copper
Barrel Size
Standard
Tongue Width
0.96 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LCA3/0-38F-X
Zoro #
G0771920
UPC #
7498355930
Country of Origin
Mexico

Dimensions

For Wire Size
3/0 AWG
Barrel Size
Standard
Tongue Width
0.96 in
Length
1.73 in
Cable Size
3/0 AWG
Width
0.96 in
Overall Length
1.73 in
Wire Strip Length (mm)
30.2
Tongue Thickness (In.)
0.13
Tongue Thickness (mm)
3.3
Copper Code Conductor Size (AWG)
36586
Stud Hole Size (In.)
44993
Overall Length (In.)
1.73
Barrel Length (mm)
29
Overall Length (mm)
43.9
Stud Hole Size (mm)
9.5
Wire Strip Length (In.)
1.19
Tongue Width (In.)
0.96
Tongue Width (mm)
24.4
Barrel Length (In.)
1.14

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
90 Degrees Angled
Color Code
Orange
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Connector Type
Standard Barrel
Connection Material
Tin
Connection Type
1 x Terminal
Features
Corrosion Resistant, 90° Angled Connector
Product Type
Copper Compression Connectors - Lugs
Maximum Voltage (kV)
35
Panduit Die Index Number
P50
Finish/Coating
Tin-Plated
Base Material
Copper
Burndy Die Index Number
14
UL Temperature Rating (°C)
90
Tongue Type
Standard
Product Material
Copper
Connector Plating
Tin
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Class
Lugs, Splices, Split Bolts & Accessories

Description

Lug Compression Connector,3/0 AWG

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
