  11. One-Hole Compression Lug, 350 kcmil Max, 1 to 2 in Stud, Standard Barrel, Copper, Red

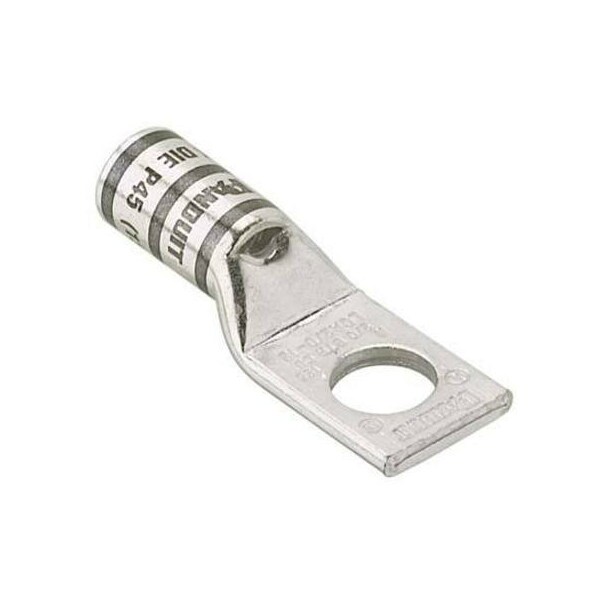

Panduit One-Hole Compression Lug, 350 kcmil Max, 1 to 2 in Stud, Standard Barrel, Copper, Red LCA350-12-X - main

One-Hole Compression Lug, 350 kcmil Max, 1 to 2 in Stud, Standard Barrel, Copper, Red

  • Mfr # LCA350-12-X

  • Zoro # G0771683

product price: $17.39
/ea

Key Features

Cable Size
350 kcmil
Connector Type
Standard Barrel
Width
1.28"
Material
Copper
Length
3.09"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA350-12-X
Zoro #
G0771683
UPC #
7498390055
Country of Origin
Mexico

Dimensions

Cable Size
350 kcmil
Width
1.28"
Length
3.09"
Overall Length
3.09 in
Tongue Width (In.)
1.28
Tongue Thickness (In.)
0.17
Overall Length (mm)
78.5
Outer Diameter (In.)
0.88
Outer Diameter (mm)
22.35
Stud Hole Size (In.)
1 to 2
Copper Code Conductor Size (kcmil)
350
Barrel Length (mm)
36.6
Overall Length (In.)
3.09
Wire Strip Length (mm)
38.1
Inside Diameter (mm)
17.78
Inside Diameter (In.)
0.7
Tongue Thickness (mm)
4.3
Barrel Length (In.)
1.44
Stud Hole Size (mm)
12.7
Wire Strip Length (In.)
37257
Tongue Width (mm)
32.5
Tongue Width
1.28 in
For Wire Size
350 kcmil
Barrel Size
Standard
For Stud Size
1 to 2 in

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Red
Item
One-Hole Compression Lug
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Die Code
18
Features
Angled Connector, Corrosion Resistant
Tongue Type
Standard
Lug Type
1 Stud Hole Lug
Finish/Coating
Tin-Plated
T & B Die Index Number
18
UL Temperature Rating (°C)
90
Panduit Die Index Number
P71
Product Type
Copper Compression Connectors - Lugs
Burndy Die Index Number
18
Base Material
Copper
Tongue Angle
Straight
Maximum Voltage (kV)
35
Connector Plating
Tin
Product Material
Copper
Product Name
Terminal Connector
Connector Details
1 x Terminal
Product Class
Lugs, Splices, Split Bolts & Accessories
For Conductor Material
Copper

Description

Lug Compression Connector,350 Kcmil

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
