Shop PANDUIT

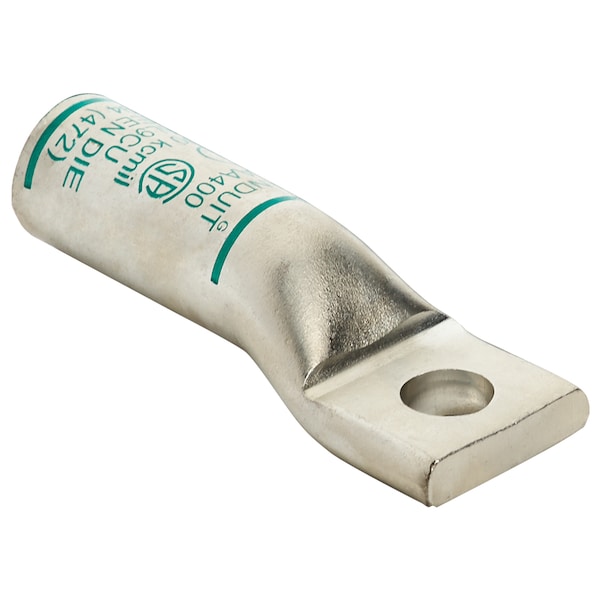

One-Hole Compression Lug, 400 kcmil Max, 5/8 in Stud, Standard Barrel, Aluminum, Green

  • Mfr # LAA400-58-2R

  • Zoro # G2794069

product price:  $45.99
/ea

Key Features

For Wire Size
400 kcmil
For Conductor Material
Aluminum
For Stud Size
5/8 in
Material
Aluminum
Barrel Size
Standard
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LAA400-58-2R
Zoro #
G2794069
UPC #
7498306992
Country of Origin
India

Dimensions

For Wire Size
400 kcmil
For Stud Size
5/8 in
Barrel Size
Standard
Tongue Width
1.61 in
Overall Length
4.92 in
Overall Length (mm)
125
Wire Strip Length (mm)
65.1
Tongue Width (mm)
41
Stud Hole Size (In.)
45054
Tongue Thickness (mm)
10.4
Barrel Length (mm)
63.5
Copper Code Conductor Size (kcmil)
400
Tongue Width (In.)
1.61
Aluminum Conductor Size (kcmil)
400
Barrel Length (In.)
2.5
Overall Length (In.)
4.92
Tongue Thickness (In.)
0.41
Stud Hole Size (mm)
15.9
Wire Strip Length (In.)
2.56

Details

Item
One-Hole Compression Lug
For Conductor Material
Aluminum
Material
Aluminum
Tongue Angle
Straight
Die Code
472
Color Code
Green
Standards
CSA Certified, UL listed 486A-486B File #E52164
Base Material
Aluminum
Tongue Type
Standard
Maximum Voltage (kV)
35
T & B Die Index Number
94
Burndy Die Index Number
472
Finish/Coating
Tin-Plated
UL Temperature Rating (°C)
90
Product Type
Aluminum Compression Lugs
Panduit Die Index Number
P94
Lug Type
1 Stud Hole Lug
Product Class
Wire Termination
Number of Holes
1
