  11. One-Hole Compression Lug, 500 kcmil Max, 1 to 2 in Stud, Standard Barrel, Copper, Brown

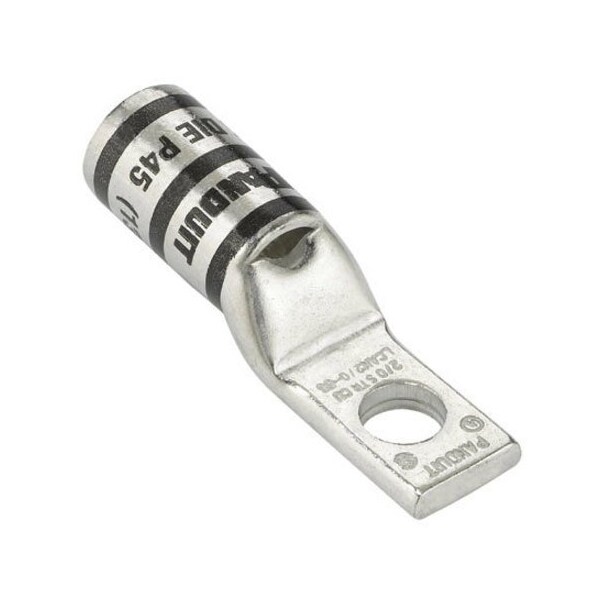

Panduit One-Hole Compression Lug, 500 kcmil Max, 1 to 2 in Stud, Standard Barrel, Copper, Brown LCAN500-12-6 - main

One-Hole Compression Lug, 500 kcmil Max, 1 to 2 in Stud, Standard Barrel, Copper, Brown

  • Mfr # LCAN500-12-6

  • Zoro # G0772952

product price: $27.55
/ea

Key Features

Cable Size
500 kcmil
Connector Type
Standard Barrel
Width
1.06"
Material
Copper
Length
3.57"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCAN500-12-6
Zoro #
G0772952
UPC #
7498360348
Country of Origin
Mexico

Dimensions

Cable Size
500 kcmil
Width
1.06"
Length
3.57"
Overall Length
3.57 in
Tongue Thickness (mm)
5.6
Barrel Length (mm)
44.5
Tongue Thickness (In.)
0.26
Stud Hole Size (mm)
12.7
Overall Length (mm)
90.2
Wire Strip Length (mm)
46
Barrel Length (In.)
1.75
Stud Hole Size (In.)
1 to 2
Tongue Width (mm)
26.9
Tongue Width (In.)
1.06
Overall Length (In.)
3.57
Copper Code Conductor Size (kcmil)
500
Wire Strip Length (In.)
1.8125
Tongue Width
1.06 in
For Stud Size
1 to 2 in
Barrel Size
Standard
For Wire Size
500 kcmil

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Brown
Item
One-Hole Compression Lug
Die Code
20
Standards
CSA certified C22.2 No. 65-13, UL listedf 486A-486B File #E52164
Connection Type
1 x Terminal
Connection Material
Tin
Features
Angled Connector, Corrosion Resistant
Maximum Voltage (kV)
35
T & B Die Index Number
87
Tongue Type
Narrow
Base Material
Copper
UL Temperature Rating (°C)
90
Panduit Die Index Number
P87
Burndy Die Index Number
20
Product Type
Copper Compression Connectors - Lugs
Tongue Angle
Straight
Finish/Coating
Tin-Plated
Product Material
Copper
Connector Details
1 x Terminal
Product Name
Terminal Connector
Connector Plating
Tin
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,500 Kcmil
