  11. One-Hole Compression Lug, 6 AWG Max, 0.25 in Stud, Standard Barrel, Copper, None, 100 PK

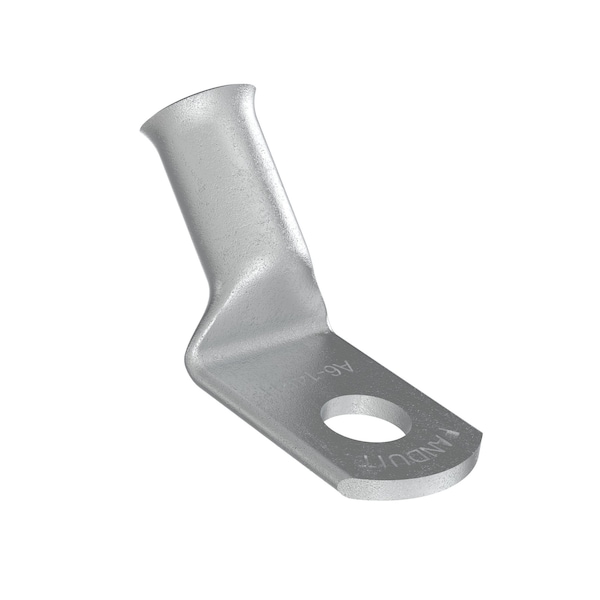

Panduit One-Hole Compression Lug, 6 AWG Max, 0.25 in Stud, Standard Barrel, Copper, None, 100 PK A6-14RH-C - main

One-Hole Compression Lug, 6 AWG Max, 0.25 in Stud, Standard Barrel, Copper, None, 100 PK

  • Mfr # A6-14RH-C

  • Zoro # G004858994

product price: $175.99
/pk 100, $1.76/ea
Free Shipping & Returns

Key Features

Material
Copper
Color Code
None
Tool Type
Copper Compression Lug
Standards
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
Overall Length
1.33 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A6-14RH-C
Zoro #
G004858994
UPC #
61305679317
Country of Origin
Mexico

Dimensions

Overall Length
1.33 in
Outside Dia.
0.31
Outer Diameter (In.)
0.31
Stud Hole Size (mm)
6.4
Overall Length (In.)
1.33
Wire Strip Length (In.)
0.56
Overall Length (mm)
33.8
Stud Hole Size (In.)
0.25
Class K Copper Flex Conductor Size (AWG)
6
Barrel Length (mm)
12.7
Barrel Length (In.)
0.5
Inside Diameter (mm)
5.58
Tongue Thickness (In.)
0.07
Inside Diameter (In.)
0.23
Tongue Thickness (mm)
1.8
Tongue Width (mm)
13.7
Wire Strip Length (mm)
14.3
Outer Diameter (mm)
7.9
Tongue Width (In.)
0.54
Tongue Width
0.54 in
For Stud Size
0.25 in
Barrel Size
Standard
For Wire Size
6 AWG

Details

Material
Copper
Color Code
None
Tool Type
Copper Compression Lug
Standards
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
Item
One-Hole Compression Lug
Hole Center to Center
0.25 in
Product Type
Copper Compression Lug
Maximum Voltage (kV)
35
UL Temperature Rating (°C)
90
Tongue Angle
45 Degrees Angled
Tongue Type
Round
Base Material
Copper
Lug Type
1 Stud Hole Lug
Finish/Coating
Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)
For Conductor Material
Copper

Description

The A6-14RH-C Copper CompressionBattery Cable Lug, 6 AWG, 1/4" Stud with a 45 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.
