  11. One-Hole Compression Lug, 8 AWG Max, Standard Barrel, Copper, Red

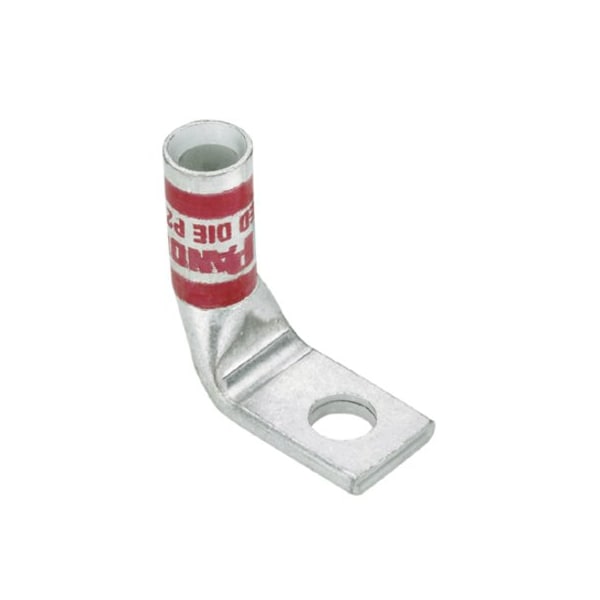

Panduit One-Hole Compression Lug, 8 AWG Max, Standard Barrel, Copper, Red LCA8-14F-L - main

One-Hole Compression Lug, 8 AWG Max, Standard Barrel, Copper, Red

  • Mfr # LCA8-14F-L

  • Zoro # G0772243

product price: $3.29
/ea
Sold in multiples of 2 for $6.58

Key Features

Cable Size
8 AWG
Connector Type
Standard Barrel
Width
0.48"
Material
Copper
Length
0.99"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA8-14F-L
Zoro #
G0772243
UPC #
7498355898
Country of Origin
Mexico

Dimensions

Cable Size
8 AWG
Width
0.48"
Length
0.99"
Overall Length
0.99 in
Barrel Length (mm)
14.2
Overall Length (mm)
25.1
Tongue Width (mm)
12.2
Copper Code Conductor Size (AWG)
8
Tongue Thickness (mm)
1.8
Overall Length (In.)
0.99
Stud Hole Size (In.)
44930
Stud Hole Size (mm)
6.4
Barrel Length (In.)
0.56
Wire Strip Length (mm)
15.9
Tongue Thickness (In.)
0.07
Tongue Width (In.)
0.48
For Wire Size
8 AWG
Barrel Size
Standard
Tongue Width
0.48 in

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Red
Item
One-Hole Compression Lug
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Die Code
49
Connection Material
Tin
Connection Type
1 x Terminal
Features
90° Angled Connector, Corrosion Resistant
Burndy Die Index Number
49
Tongue Angle
90 Degrees Angled
Maximum Voltage (kV)
35
Panduit Die Index Number
P21
UL Temperature Rating (°C)
90
Base Material
Copper
Tongue Type
Standard
Product Type
Copper Compression Connectors - Lugs
Finish/Coating
Tin-Plated
Product Material
Copper
Connector Plating
Tin
Product Name
Terminal Connector
Connector Details
1 x Terminal
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,No.8 AWG
