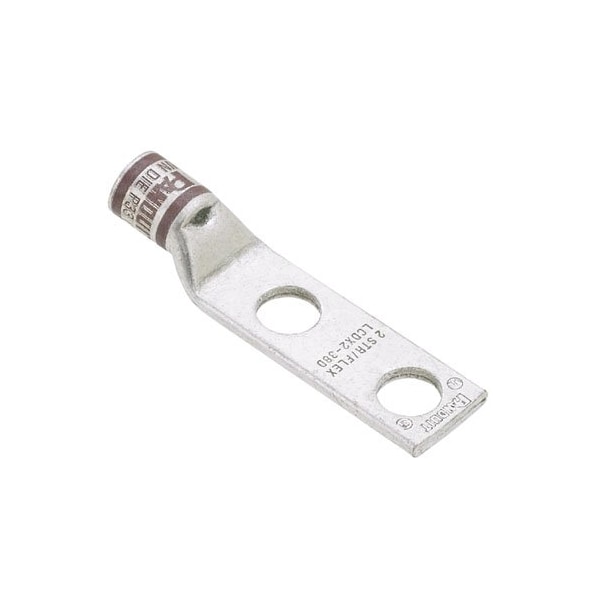

Two-Hole Compression Lug, 2 AWG Max, Standard Barrel, Copper, Brown
- Mfr # LCDX2-56D-E
- Zoro # G104858276
product price:Â
$
15.39
/ea
Key Features
For Wire Size
2 AWG
For Conductor Material
Copper
Material
Copper
Barrel Size
Standard
Tongue Width
0.70 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LCDX2-56D-E
- Zoro #
- G104858276
- UPC #
- 7498342371
- Country of Origin
- Mexico
- Item
- Two-Hole Compression Lug
- For Conductor Material
- Copper
- Material
- Copper
- Tongue Angle
- Straight
- Die Code
- 10
- Color Code
- Brown
- Standards
- CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164
- Tool Type
- Compression Connectors - Lugs
- Hole Center to Center
- 44697
- Maximum Voltage (kV)
- 35
- Standards Met
- CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164
- T & B Die Index Number
- 33
- Stud Hole Spacing (mm)
- 25.4
- Panduit Die Index Number
- P33
- Burndy Die Index Number
- 10
- Product Type
- Compression Connectors - Lugs
- Tongue Type
- Standard
- UL Temperature Rating (°C)
- 90
- Stud Hole Spacing (In.)
- 1
- Finish/Coating
- Tin-Plated
- Base Material
- Copper
- Product Class
- Wire Termination
Dimensions
- For Wire Size
- 2 AWG
- Barrel Size
- Standard
- Tongue Width
- 0.70 in
- Overall Length
- 2.63 in
- Class H Copper Flex Conductor Size (AWG)
- 2
- Wire Strip Length (mm)
- 17
- Barrel Length (mm)
- 15
- Copper Code Conductor Size (AWG)
- 2
- Overall Length (mm)
- 66.8
- DLO Copper Flex Conductor Size (AWG)
- 2
- Stud Hole Size (In.)
- 45062
- Tongue Thickness (In.)
- 0.11
- Tongue Thickness (mm)
- 2.8
- Barrel Length (In.)
- 0.59
- Class G Copper Flex Conductor Size (AWG)
- 2
- Class K Copper Flex Conductor Size (AWG)
- 2
- Wire Strip Length (In.)
- 45246
- Tongue Width (In.)
- 0.7
- Overall Length (In.)
- 2.63
- Class I Copper Flex Conductor Size (AWG)
- 2
- Stud Hole Size (mm)
- 7.9
- Class M Copper Flex Conductor Size (AWG)
- 2
- Tongue Width (mm)
- 17.8
Description
Two-hole, flex lug, #2 AWG wire, 5/16 stud hole, 1 hole spacing.
