  11. Two-Hole Compression Lug, 3/0 AWG Max, 1 to 2 in Stud, Standard Barrel, Copper, Orange

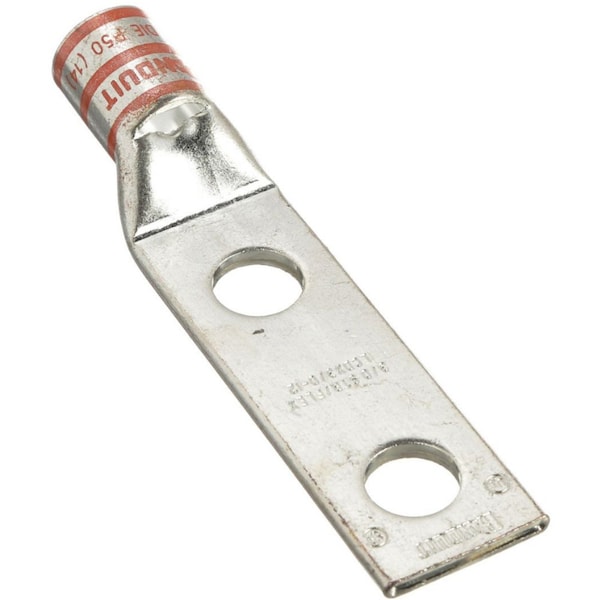

Panduit Two-Hole Compression Lug, 3/0 AWG Max, 1 to 2 in Stud, Standard Barrel, Copper, Orange LCDX3/0-12-X - main

Two-Hole Compression Lug, 3/0 AWG Max, 1 to 2 in Stud, Standard Barrel, Copper, Orange

  • Mfr # LCDX3/0-12-X

  • Zoro # G0777922

product price: $19.59
/ea

Key Features

Cable Size
3/0 AWG
Connector Type
Standard Barrel
Width
1.06"
Material
Copper
Length
4.31"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCDX3/0-12-X
Zoro #
G0777922
UPC #
7498342386
Country of Origin
Mexico

Dimensions

Cable Size
3/0 AWG
Width
1.06"
Length
4.31"
Overall Length
4.31 in
Class G Copper Flex Conductor Size (AWG)
36586
Class K Copper Flex Conductor Size (AWG)
36586
Tongue Width (mm)
26.9
Barrel Length (In.)
0.91
Wire Strip Length (mm)
25
Copper Code Conductor Size (AWG)
36586
DLO Copper Flex Conductor Size (AWG)
36586
Tongue Thickness (In.)
0.14
Tongue Width (In.)
1.06
Stud Hole Size (mm)
12.7
Class I Copper Flex Conductor Size (AWG)
36586
Class M Copper Flex Conductor Size (AWG)
36586
Tongue Thickness (mm)
3.6
Wire Strip Length (In.)
1
Class H Copper Flex Conductor Size (AWG)
36586
Barrel Length (mm)
23.1
Stud Hole Size (In.)
1 to 2
Overall Length (mm)
109.5
Overall Length (In.)
4.31
Barrel Size
Standard
Tongue Width
1.06 in
For Stud Size
1 to 2 in
For Wire Size
3/0 AWG

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Orange
Item
Two-Hole Compression Lug
Die Code
14
Color
Orange
Connection Material
Tin
Connection Type
1 x Terminal
Features
Corrosion Resistant
Panduit Die Index Number
P50
Burndy Die Index Number
14
Tongue Type
Standard
Base Material
Copper
Finish/Coating
Tin-Plated
Stud Hole Spacing (mm)
44.5
Product Type
Compression Connectors - Lugs
Stud Hole Spacing (In.)
1.75
Maximum Voltage (kV)
35
UL Temperature Rating (°C)
90
Product Name
Terminal Connector
Connector Details
1 x Terminal
Product Material
Copper
Product Color
Orange
Connector Plating
Tin
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,3/0 AWG
