  11. Two-Hole Compression Lug, 4/0 AWG Max, 1 to 2 in Stud, Standard Barrel, Copper, Purple

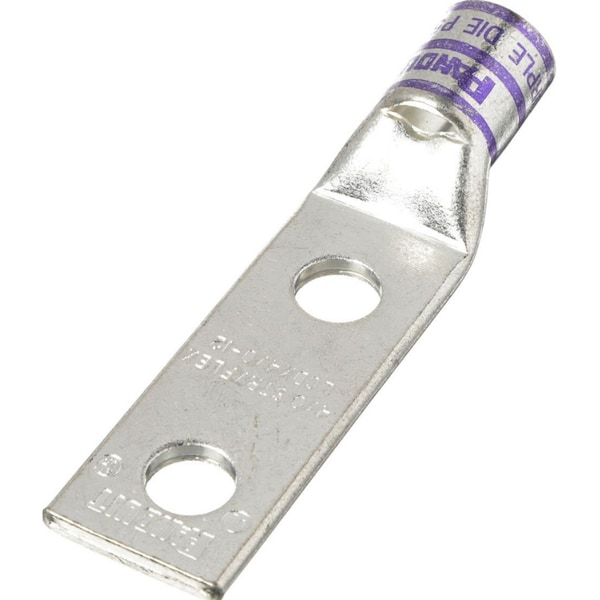

Panduit Two-Hole Compression Lug, 4/0 AWG Max, 1 to 2 in Stud, Standard Barrel, Copper, Purple LCDX4/0-12-X - main

Two-Hole Compression Lug, 4/0 AWG Max, 1 to 2 in Stud, Standard Barrel, Copper, Purple

  • Mfr # LCDX4/0-12-X

  • Zoro # G0777992

product price: $17.79
/ea

Key Features

Cable Size
4/0 AWG
Connector Type
Standard Barrel
Width
1.19"
Material
Copper
Length
4.52"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCDX4/0-12-X
Zoro #
G0777992
UPC #
7498342391
Country of Origin
Mexico

Dimensions

Cable Size
4/0 AWG
Width
1.19"
Length
4.52"
Overall Length
4.52 in
DLO Copper Flex Conductor Size (AWG)
36617
Class H Copper Flex Conductor Size (AWG)
36617
Class G Copper Flex Conductor Size (AWG)
36617
Barrel Length (mm)
26.2
Tongue Width (mm)
30.2
Stud Hole Size (In.)
1 to 2
Overall Length (mm)
114.8
Wire Strip Length (In.)
1.06
Copper Code Conductor Size (AWG)
36617
Class K Copper Flex Conductor Size (AWG)
36617
Overall Length (In.)
4.52
Wire Strip Length (mm)
75
Tongue Thickness (mm)
4.1
Stud Hole Size (mm)
12.7
Tongue Thickness (In.)
0.16
Barrel Length (In.)
1.03
Class M Copper Flex Conductor Size (AWG)
36617
Class I Copper Flex Conductor Size (AWG)
36617
Tongue Width (In.)
1.19
Tongue Width
1.19 in
Barrel Size
Standard
For Stud Size
1 to 2 in
For Wire Size
4/0 AWG

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Purple
Item
Two-Hole Compression Lug
Die Code
15
Color
Purple
Connection Type
1 x Terminal
Connection Material
Tin
Features
Corrosion Resistant
Burndy Die Index Number
15
UL Temperature Rating (°C)
90
Stud Hole Spacing (mm)
44.5
Product Type
Compression Connectors - Lugs
Maximum Voltage (kV)
35
Tongue Type
Standard
Stud Hole Spacing (In.)
1.75
Finish/Coating
Tin-Plated
Base Material
Copper
Panduit Die Index Number
P54
Connector Plating
Tin
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Color
Purple
Product Material
Copper
Product Class
Lugs, Splices, Split Bolts & Accessories
For Conductor Material
Copper

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
