Parker

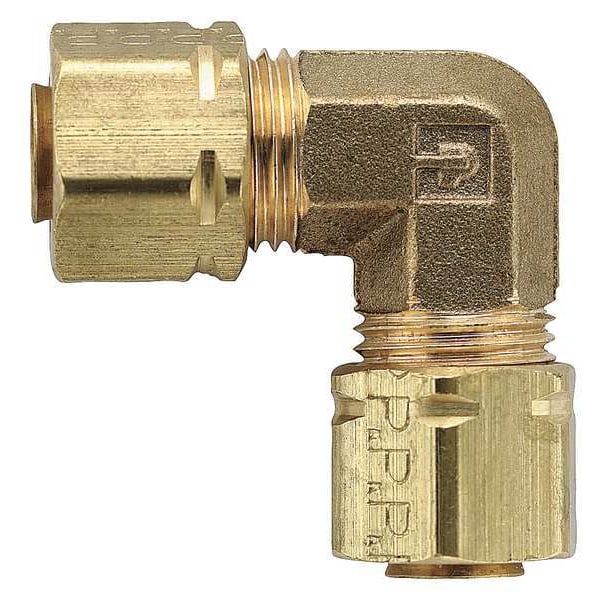

1/2" Compression Brass Union 90 Degree Elbow 10PK

product price: $220.99
/pk 10, $22.10/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Brass
  • Specific Fitting Shape 90 Degrees Elbow
  • Fitting Connection Type Compression
  • Tube Size 1/2 in
  • Specific Pipe Fitting Shape 90 Degree Swivel Elbow
See all product information

Product Information

Dimensions

Tube Size 1/2 in
Thread Size B 11/16-20
Fitting Side B Tube Outer Diameter 1/2 in
Thread Size A 11/16-20
Overall Length 1 5/32 in
Fitting Side A Tube Outer Diameter 1/2 in
Outside Dia. .094"

Details

Item Union Elbow, 90 Degrees
Tube Fitting Material Brass
Specific Fitting Shape 90 Degrees Elbow
Fitting Connection Type Compression
Specific Pipe Fitting Shape 90 Degree Swivel Elbow
Basic Pipe Fitting Shape Elbow
Temp. Range -65 Degrees to 250 Degrees F
Pipe Fitting Connection Type Compression
Basic Pipe Fitting Material Metal
Max. Pressure 750 psi
Standards UL
Series Compression
Maximum Operating Pressure 750 psi
System of Measurement Imperial
Maximum Operating Temperature 200 Degrees F
Fitting Side A Connection Type Compression
Minimum Operating Temperature 65 Degrees F
Fitting Material Brass
Application Air, Inert Gases, Non-Combustible Gases, Potable Water
Fitting Side B Connection Type Compression
Compatible Tube Material Aluminum, Copper, FEA, PFA, TFE, Thermoplastic
Type Compress-Align
Pressure (PSI) 750
Connection Tube

Description

Union Elbow, 90 Degrees, Application Air, Inert Gases, Non-Combustible Gases, Potable Water, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Material Brass, Fitting Side A Tube Outer Diameter 1/2 in, Fitting Side B Tube Outer Diameter 1/2 in, Maximum Operating Pressure 750 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 5/32 in, Specific Fitting Shape 90 Degrees Elbow, Thread Size A 11/16-20, Thread Size B 11/16-20
