  11. 1/2" FNPT PTFE Ball Valve Inline

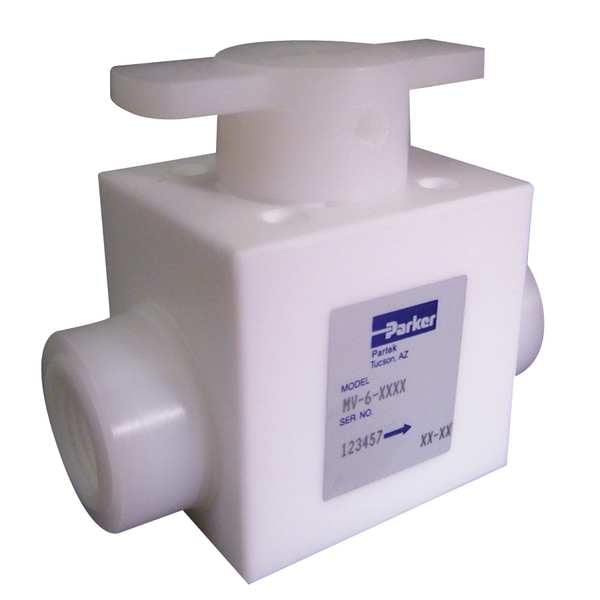

Parker 1/2" FNPT PTFE Ball Valve Inline MV-6-1818-0 - main

1/2" FNPT PTFE Ball Valve Inline

  • Mfr # MV-6-1818-0

  • Zoro # G1081202

product price: $1,253.99
/ea
Free Shipping & Returns

Key Features

Ball Material
PTFE
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
One-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MV-6-1818-0
Zoro #
G1081202
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/2 in
Overall Length
3.72 in
Connection Size - Side 2
1/2 in
Handle Length
2.72 in
Nominal Valve Size
1/2 in
Connection Size - Side 1
1/2 in

Details

Ball Material
PTFE
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
One-Piece
For Media
Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Handle Material
HDPE
Handle Type
Tee
Ball Valve Product Group
Manual
Stem Type
1-Piece Stem/Ball
Seat Material
PTFE
Body Material
Plastic
Stem Material
PTFE
Temp. Range
41 Degrees to 104 Degrees F
Max. Pressure
120 PSI CWP
Seal Material
PTFE
Type
One Piece
Maximum Pressure - Combustible Gas
Not Rated
Maximum Pressure - Steam
Not Rated
Operating Temperature - Minimum
41 Degrees F
Connection Gender - Side 1
Female
Vacuum Service Rating
25 in Hg
Color - Valve Handle
White
Connection Type - Side 2
NPT
Connection Type - Side 1
NPT
Operating Temperature - Maximum
104 Degrees F
Handle - Locking
Non-Locking
Coefficient of Volume (Cv)
6.59
Connection Gender - Side 2
Female
Included Mounting
Base Pad
Vented Ball Valve
Non-Vented
3-A Standard Compliance
Not Rated
Valve Series
MV-6

Description

Manual Two-Way Ball Valve, Body Material PTFE, For Media Water, Valve Construction One-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 120 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 25 in Hg, Ball Material PTFE, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Tee

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
