Shop PARKER

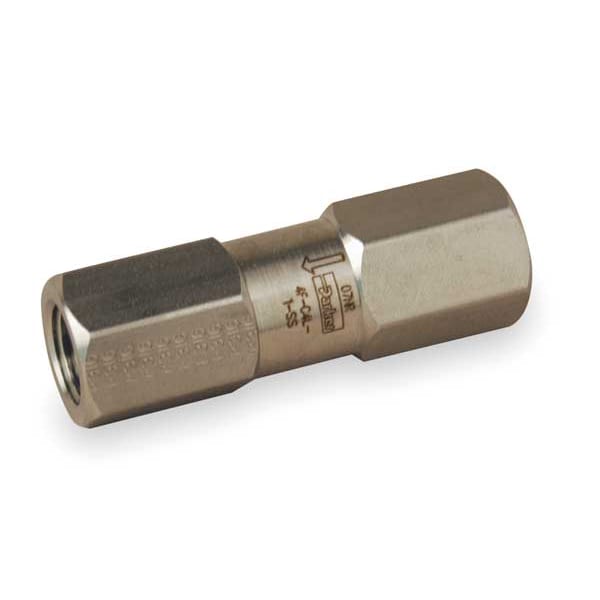

1/2" FNPT Stainless Steel Instrumentation Check Valve

  • Mfr # 8F-C8L-1-SS
  • Zoro # G2479793
product price:
$
235.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1/2"
Connection Type
FNPT x FNPT
Connection
FNPT
Body Material
316 Stainless Steel
Sub-Category
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
8F-C8L-1-SS
Zoro #
G2479793
UPC #
-
Country of Origin
United States
Connection Type
FNPT x FNPT
Connection
FNPT
Body Material
316 Stainless Steel
Sub-Category
Stainless Steel
Cap to Inlet Center
7 13/32 in
Application - Valves
Corrosives
Material of Construction
316 Stainless Steel
Flow
11.2 gpm
Cracking Pressure - Check Valves
1.0 psi
Connection Type - Check Valves
FNPT x FNPT
Max. Water Pressure - Valves
6000 psi @ 100 Degrees F
Item - Check Valves
Check Valve
Max. Water Pressure
6000 psi @ 115 Degrees F
Spring Material - Check Valves
316 Stainless Steel
Max. Steam Pressure - Valves
Not Rated
Seal Material - Check Valves
Fluorocarbon
Seat Material - Check Valves
Fluorocarbon
Min. Temp. - Valves
-30 Degrees F
Flow Design
Single
Cracking Pressure
1 psi
Mechanism and Body Design
Inline Poppet
Flow - Valves
11.2 gpm
Max. Temp.
400 Degrees F
Full Flow - Valves
No
Item
Instrumentation Check Valve
Mounting Position
Vertical or Horizontal
Seat Material
FKM
Max. Temp. - Valves
275 Degrees F
Standards
ASTM A 276
Mounting Orientation - Check Valves
Horizontal, Vertical
Body Material - Valves
316 Stainless Steel
Seal Material
FKM
Spring Material
316 Stainless Steel
Mounting Orientation
Horizontal, Vertical
Maximum Pressure - Operating
6,000 psi
Valve Body Style
Inline
Operating Temperature - Minimum
-15 Degrees F
3-A Standard Compliance
Not Rated
Connection Type - Side 1
NPT
Vacuum Service Rating
Not Rated
Maximum Pressure - Steam
Not Rated
Connection Type - Side 2
NPT
Silent Check
Standard
Connection Gender - Side 1
Female
Coefficient of Volume (Cv)
3.53
For Media
Fluids, Gas
Check Mechanism
Poppet
Operating Temperature - Maximum
400 Degrees F
Connection Gender - Side 2
Female
Type
Unidirectional
Valve Series
C

Description

PARKER 8F-C8L-1-SS is a 1/2 in instrumentation check valve with FNPT x FNPT female NPT connections. It uses an inline poppet design to allow one-way flow and provides check-valve function for reverse-flow control in instrument and process control systems. The body and spring are made of 316 stainless steel, with FKM/fluorocarbon seal and seat materials. It is rated for fluid and gas service; confirm media compatibility with 316 stainless steel and FKM/fluorocarbon materials.

Key Features:

  • Instrumentation check valve with unidirectional inline poppet design
  • 1/2 in FNPT x FNPT female NPT connections
  • 316 stainless steel body
  • FKM / fluorocarbon seal and seat materials
  • 316 stainless steel spring
  • 1 psi cracking pressure
  • Cv 3.53 flow capacity
  • 11.2 gpm flow rate
  • Maximum operating pressure: 6,000 psi
  • Maximum water pressure: 6,000 psi at 115 Degrees F
  • Operating temperature range: -15 Degrees F to 400 Degrees F
  • Horizontal or vertical mounting orientation
  • Overall length: 3.56 in
  • ASTM A 276
  • Valve series: C
