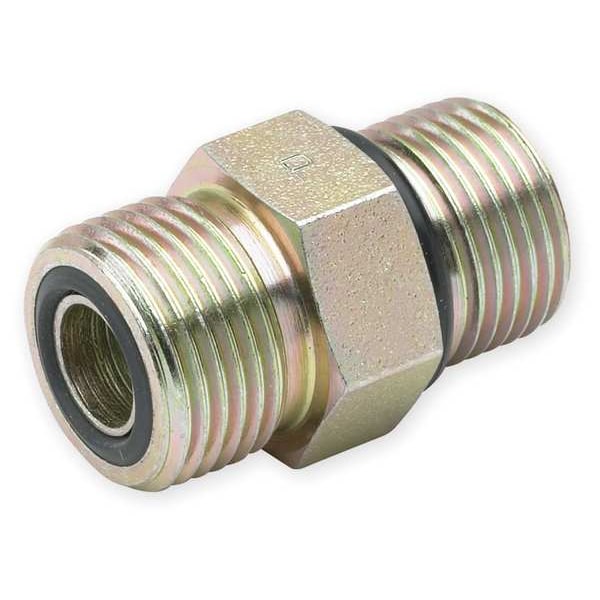

1/2" SAE-ORB x ORFS 316 SS Straight Thread Connector
Mfr # 8 F5OLO-SS
Zoro # G2493364
product price:Â
$
50.25
/ea
Key Features
Fitting Shape
Straight
Fitting Material
Stainless Steel
Fitting Connection Type
SAE-ORB x ORFS
Thread Size
3/4-16
Temp. Range
-30 Degrees to 250 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8 F5OLO-SS
- Zoro #
- G2493364
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- 3/4-16
- Tube Size
- 1/2 in
- Hex Size
- 7/8 in
- Fitting Side A Tube Outer Diameter
- 1/2 in
- Overall Length
- 1 7/16 in
- Compatible Tube Wall Thickness
- 0.148 in
- Fitting Side B Pipe Size
- 1/2 in
- Thread Size B
- 3/4-16
- Length
- 1 7/16 in
- Fitting Side 2 Pipe Size
- 1/2 in
- Fitting Side 1 Tube Outer Diameter
- 1/2 in
- Thread Size 2
- 3/4-16
- Wire Rope Length
- 1 7/16 in
Description
Compression Fitting Adapter, Application Hydraulics, Fitting Side A Connection Type Male O-Ring Face Seal, Fitting Side B Connection Type Male SAE-ORB, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 1/2 in, Material Grade 316, Maximum Operating Pressure 9,200 psi, Maximum Operating Temperature 1,200 Degrees F, Overall Length 1 7/16 in, Specific Fitting Shape Straight Adapter, Fitting Side B Pipe Size 1/2 in, Compatible Fitting Brands Seal-Lok(TM), Thread Size B 3/4-16
