Parker

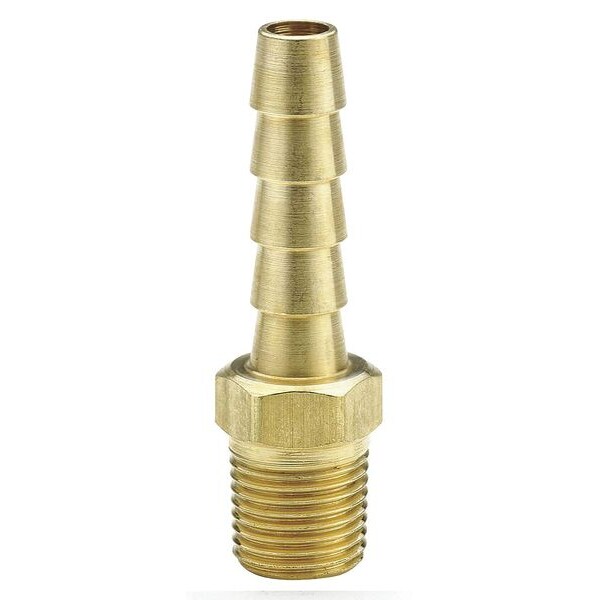

1/4" Barb x MNPT Low Lead Brass Adapter

original price: $13.26
18% off
new price: $10.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Low Lead Brass
  • Specific Fitting Shape Straight Adapter
  • Barb Size 1/4 in
  • Fitting Connection Type Barbed x MNPT
  • Pipe Size - Pipe Fitting 1/4 in
See all product information

Product Information

Dimensions

Barb Size 1/4 in
Pipe Size - Pipe Fitting 1/4 in
Hex Size 9/16 in
Pipe Size (Fittings) 1/4"
Fitting Side B Pipe Size 1/4 in
Overall Length 1 23/32 in
Fitting Side A Tube Inner Diameter 1/4 in

Details

Item Male Adapter
Tube Fitting Material Low Lead Brass
Specific Fitting Shape Straight Adapter
Fitting Connection Type Barbed x MNPT
Temp. Range -40 Degrees to 160 Degrees F
Basic Pipe Fitting Material Metal
Standards NSF Lead Content Program
Basic Pipe Fitting Shape Adapter
Max. Pressure 150 psi
Pipe Fitting Connection Type Barbed x MNPT
Specific Pipe Fitting Shape Adapter
Resistance Properties Vibration-Resistant
Fitting Material Brass
Material Grade C27450
Application Air
Maximum Operating Pressure 150 psi
Maximum Operating Temperature 160 Degrees F
Fitting Side A Connection Type Barbed
Minimum Operating Temperature 40 Degrees F
Barb Style Standard
Fitting Side B Connection Type MNPT

Description

Male Adapter, Fitting Side A Connection Type Barbed, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Inner Diameter 1/4 in, Barb Style Standard, Fitting Material Brass, Material Grade C27450, Overall Length 1 23/32 in, Specific Fitting Shape Straight Adapter, Application Air, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 160 Degrees F, Standards NSF Lead Content Program, Hex Size 9/16 in, Minimum Operating Temperature 40 Degrees F
