Parker

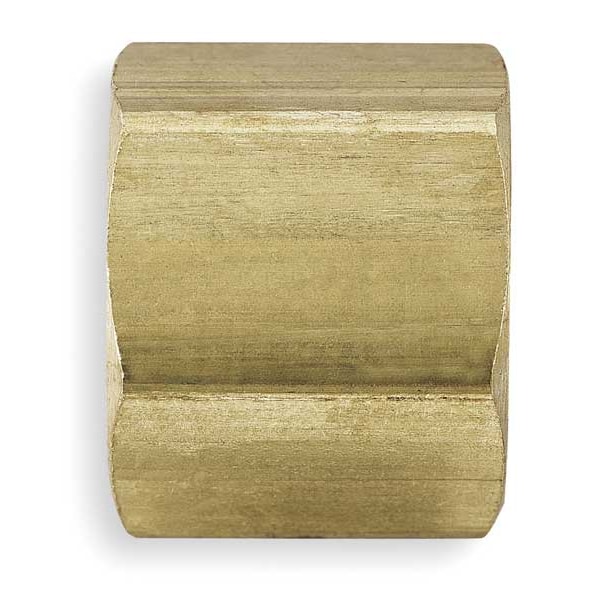

1/4" Compression Brass Nut 10PK

Parker 1/4" Compression Brass Nut 10PK 61C-4
Hover or click to zoom Tap to zoom
$5.25
pkg. of 10 ($0.53/ea)
  • Item: Nut
  • Tube Fitting Material: Brass
  • Specific Fitting Shape: Nut
See full product details
Orders over $75 ship free.
Total: $5.25

Parker #61C-4 Specifications

  • Item: Nut
  • Tube Fitting Material: Brass
  • Specific Fitting Shape: Nut
  • Fitting Connection Type: Compression
  • Tube Size: 1/4 in
  • Basic Pipe Fitting Material: Metal
  • Specific Pipe Fitting Shape: Nut
  • Hex Size: 1/2 in
  • Max. Pressure: 300 psi
  • Pipe Fitting Connection Type: Compression
  • Temp. Range: -65 Degrees to 200 Degrees F
  • Basic Pipe Fitting Shape: Nut
  • System of Measurement: Imperial
  • Thread Size: 7/16-24
  • Compatible Tube Outer Diameter: 1/4 in
  • Overall Length: 7/16 in
  • Compatible Tube Material: Thermoplastic
  • Maximum Operating Pressure: 300 psi
  • Standards: SAE 060110
  • Application: Air, Inert Gases, Non-Combustible Gases
  • Series: Compression
  • Fitting Material: Brass
  • Maximum Operating Temperature: 250 Degrees F
  • Minimum Operating Temperature: 65 Degrees F
  • Threading Size: 7/16-24
  • Connection Type: Compression
  • End Connection Type: Compression
  • Fitting Shape: Nut
  • Fitting Body Material: Brass
  • For Tube Outside Diameter: 1/4 in
  • For Tube OD: 1/4 in
  • Country of Origin (subject to change): United States

Description

Nut, Application Air, Inert Gases, Non-Combustible Gases, Fitting Material Brass, Maximum Operating Pressure 300 psi, Maximum Operating Temperature 250 Degrees F, Overall Length 7/16 in, Thread Size 7/16-24, Specific Fitting Shape Nut, System of Measurement Imperial, Compatible Tube Outer Diameter 1/4 in, Series Compression, Standards SAE 060110, Compatible Tube Material Thermoplastic, Fitting Connection Type Compression, Hex Size 1/2 in, Minimum Operating Temperature 65 Degrees F

Restrictions and Compliance

  • This product is not intended for potable water applications (human consumption – drinking and cooking) and has not been designed to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable water applications. This item is for use, only, in non-potable (non-human consumption) water applications.
