1/8" FNPT x MNPT SS Street 90 Degree Elbow
Mfr # 2-2 SE-SS
Zoro # G1023477
Key Features
Specifications
Product Information
Dimensions
Description

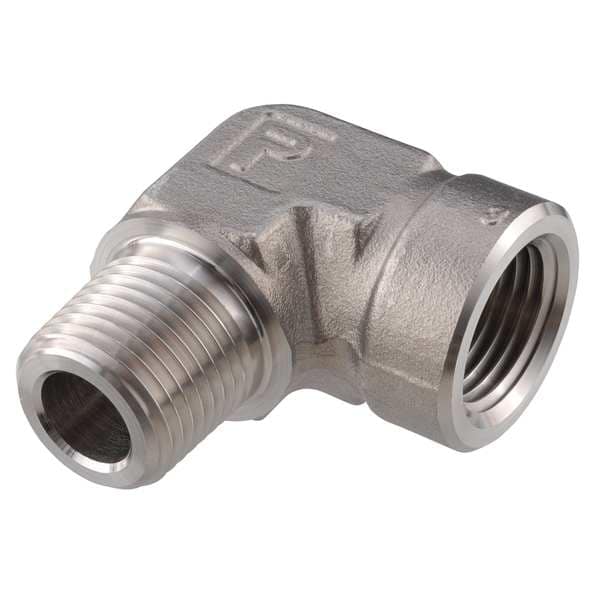

The PARKER - 2-2 SE-SS is a 90 Degree Street Elbow stainless steel pipe fitting designed to change flow direction by 90 degrees. It features one male (MNPT) end and one female (FNPT) end, allowing direct connection to another fitting or pipe without the need for a short nipple. Constructed of 316 stainless steel, this elbow offers inherent corrosion resistance and is compatible with air, natural gas, and oil systems per ANSI B31.1 standards. It accommodates 1/8 inch nominal pipe sizes and operating temperature range: -425 °F to 1200 °F with a maximum operating pressure of 5,500 psi.
Key Features:
- Shape: 90 Degree Street Elbow with male and female NPT threaded ends (MNPT x FNPT)
- Pipe Size: 1/8 in nominal diameter on both ends
- Material: 316 Stainless Steel
- Maximum Operating Pressure: 5,500 psi
- Operating Temperature Range: -425 °F to 1200 °F
- Length: 0.78 in fitting length; 1 7/16 in overall length
- Hex Size: 9/16 in across flats for wrench application
- Applications: Compatible with air, natural gas, and oil systems per ANSI B31.1 standards
- Does not include pre-applied thread sealant or additional seals
