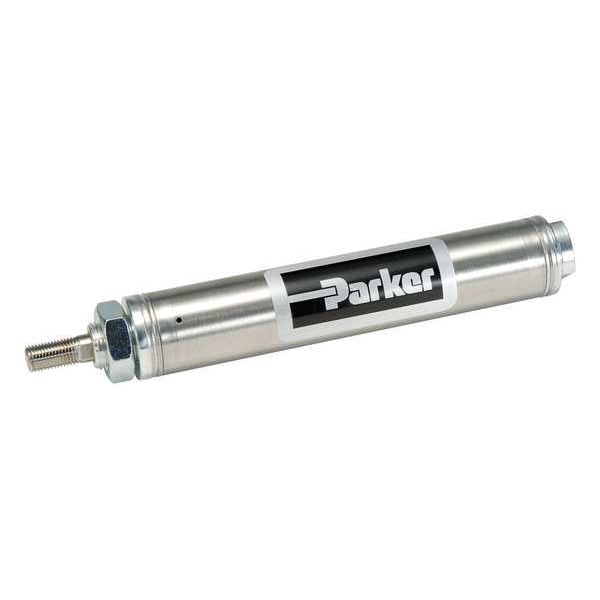

Air Cylinder, 1 1/2 in Bore, 3 in Stroke, Round Body Single Acting, Stainless Steel .
Mfr # 1.50NSR03.00
Zoro # G6128692
product price: $58.35
/eaKey Features
Cylinder Action
Single Acting
Max. Pressure
250 psi
Body Material
Stainless Steel
Rod Dia.
0.437 in
Rod Thread Length
3/4 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1.50NSR03.00
Zoro #
G6128692
UPC #
-
Country of Origin
United States
Dimensions
Bore Dia.
1 1/2 in
Rod Dia.
0.437 in
Overall Length
8.3 in
Rod Thread Length
3/4 in
Port Size
1/8 in FNPT
Dimension C
0.25 in
Dimension N1
3/4"-16
Dimension A
3/4 in
Dimension Kk
7/16"-20 UNF
Dimension E
0.88 in
Dimension Cc
0.437 in
Dimension D
0.38 in
Rod Thread Size
7/16"-20
Air Cylinder Bore Dia.
1 1/2 in
Dimension B
0.749 in
Dimension J
0.25 in
Rod Diameter
7/16 in
Stroke Length
3 in
Nose Mount Thread Size
3/4"-16
Inlet Size
1/8 in
End Cap Length
1/4 in
Bore Diameter
1 1/2 in
Body Diameter
1 9/16 in
Description
Air Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Non-Magnetic Piston, Mounting Type Nose, Bore Diameter 1 1/2 in, Cushion Type None, Stroke Length 3 in, Inlet Size 1/8 in, Air Inlet Type NPT, Spring Retraction Force 18 lb, Cylinder Action Single Acting, Number of Rods Single Rod, System of Measurement Inch, Mounting Location Front, Body Material Grade 304, Body Diameter 1 9/16 in, Inlet Gender Female
