Parker

Air Regulator, 1/4 In. NPT, 53 cfm, 250 psi

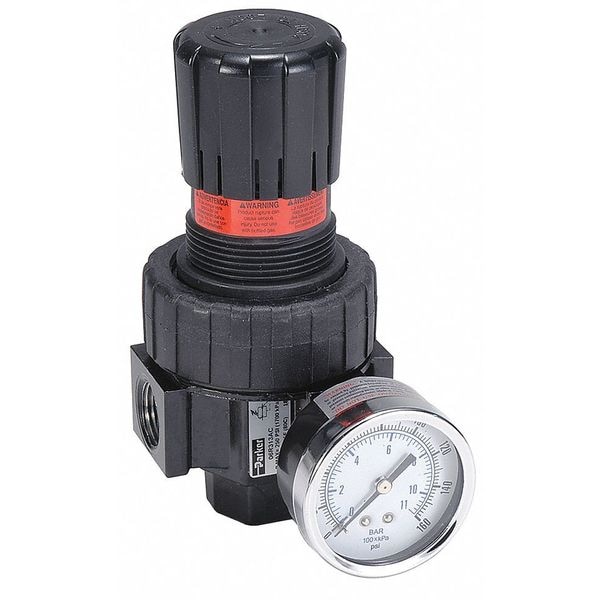

Parker Air Regulator, 1/4 In. NPT, 53 cfm, 250 psi 06R118AC
Tap to zoom
Hover or click to zoom
$84.00
  • Item: Compressed Air Regulator
  • Pipe Size - Regulators: 1/4 in
  • Max. Inlet Pressure - Regulators: 250 psi
See full product details
This item ships free.
Total: $84.00

Parker #06R118AC Specifications

  • Item: Compressed Air Regulator
  • Pipe Size - Regulators: 1/4 in
  • Max. Inlet Pressure - Regulators: 250 psi
  • Adjustment Range - Regulators: 0 to 125 psi
  • Max. Temp. - Regulators: 175 Degrees F
  • Overall Height - Regulators: 6.08 in
  • Max. Flow - Regulators: 53 cfm
  • Series: 6
  • Gauge Port: 1/4 in NPT
  • Compressed Air Regulator Product Grouping: General Purpose Air Regulator
  • Overall Height (Regulators): 6.08"
  • Valve Design: Balanced
  • Overall Length: 2.74 in
  • Pipe Size (Regulators): 1/4"
  • Includes: (2) Gauge Plugs and Face Gauge, Regulator
  • Overall Width (Regulators): 2.84"
  • Max. Flow (Regulators): 53 cfm
  • Max. Temp. (Regulators): 175 Degrees F
  • Adjustment Range (Regulators): 0 to 125 psi
  • Overall Width - Regulators: 2.84 in
  • Body Material: Zinc
  • Max. Inlet Pressure (Regulators): 250 psi
  • Adjustment Knob: Nonrising
  • Air Inlet Type: NPT
  • Air Inlet Size: 1/4 in
  • Overall Height: 6 in
  • Overall Width: 2 3/4 in
  • Pressure Gauge Port Size: 1/4 in
  • Adjustment Location: Top
  • Pressure Gauge Port Type: NPT
  • Weight: 1.6 lb
  • Maximum Operating Pressure: 125 psi
  • Maximum Flow Rate: 53 cfm
  • Inlet Size (Combined): 1/4 in NPT
  • Number of Air Inlets: 1
  • Pressure Control Range (Combined): 2 psi to 125 psi
  • Adjustment Mechanism: Knob
  • System Location: Air Line
  • For Substance Type: Air
  • Air Outlet Size: 1/4 in
  • Seal Material: Nitrile
  • For Fluid Type: Air
  • Maximum Operating Temperature: 175 Degrees F
  • Pressure Gauge Included: Yes
  • Air Inlet Gender: Female
  • Minimum Operating Pressure: 18 psig
  • Overall Depth: 2 13/16 in
  • Air Outlet Gender: Female
  • Minimum Regulated Pressure: 2 psi
  • Modular Connection: Modular Connection
  • Regulator Type: Relieving
  • Minimum Operating Temperature: 32 Degrees F
  • Maximum Regulated Pressure: 125 psi
  • Adjustment Mechanism Material: Steel
  • Regulator Body Material: Aluminum or Zinc
  • Air Outlet Type: NPT
  • Number of Air Outlets: 1
  • Country of Origin (subject to change): United States

Description

General Purpose Air Regulator, Pipe Size - Regulators 1/4 in, Max. Flow - Regulators 53 cfm, Max. Inlet Pressure - Regulators 250 psi, Max. Temp. - Regulators 175 Degrees F, Adjustment Range - Regulators 0 to 125 psi, Nonrising Adjustment Knob, 1/4 in NPT Gauge Port, 6 Series, Balanced Valve Design, Overall Height - Regulators 6.08 in, Overall Width - Regulators 2.84 in, Overall Length 2.74 in, Body Material Aluminum, Includes (2) Gauge Plugs and Face Gauge, Regulator
