Shop All Hydraulic Cartridge Valves
Parker

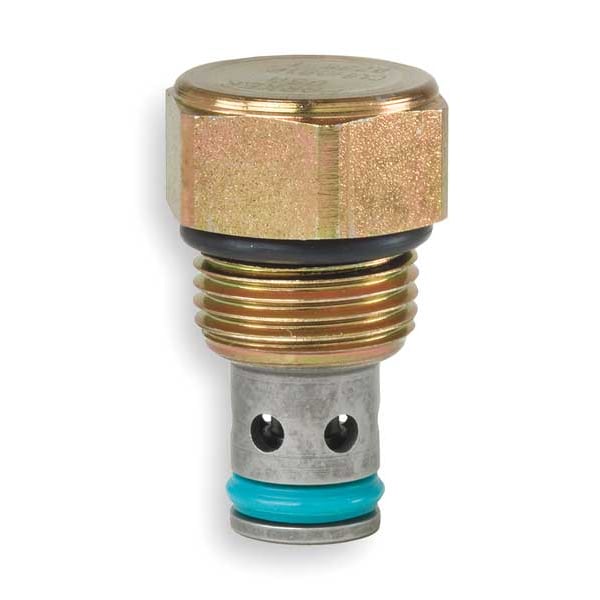

Cartridge Valve, Check, 10 GPM

original price: $26.25
10% off
new price: $23.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Cavity Size C08-2
  • Cartridge Valve Type Check
  • Max. Flow - Hydraulic Valves 10 gpm
  • Max. Pressure - Hydraulic Valves 5,000 psi
  • Valve Cavity C08-2
See all product information

Product Information

Dimensions

Valve Cavity Size C08-2
Overall Length 1.51 in
Overall Width 0.875 in
Overall Height 0.45 in
Hex Size 7/8 in

Details

Cartridge Valve Item Cartridge Valve
Cartridge Valve Type Check
Max. Flow - Hydraulic Valves 10 gpm
Max. Pressure - Hydraulic Valves 5,000 psi
Valve Cavity C08-2
Way 2
Max. Pressure (PSI) 5000
Valve Type Check
Max. Flow GPM 10
Application Blocks Flow From Port 2 to Port 1, Free Flow Port 1 to Port 2
Item Cartridge Valve
Number of Positions Two Positions
Number of Ways One-Way
Body Material Steel
Includes Filter Filter Not Included
Actuation Mechanism Pressure
Return Mechanism Spring
For Media Mineral Oil, Synthetic Oil
Flow Rate - Maximum 10 gpm
Fluid Viscosity - Maximum 2,000 SUS
Venting Non-Vented
Control Direction One-Way
Pressure Setting - Maximum 5,000 psi
Leakage 0.13 cc/min
Mounting Block-Mounted
Operating Temperature - Maximum 200 Degrees F
Series CVH081P
Inlet Pressure - Maximum 5,000 psi
Standards ISO 4406 18/16/13
Operating Temperature - Minimum -35 Degrees F
Valve Control Directional Control
Includes Seals Seals Included
Body Finish Zinc Plated
Seal Material Polyurethane
Valve Action Normally Closed
Cartridge Material Steel

Description

Cartridge Valve, Body Material Steel, Number of Positions Two Positions, Valve Action Normally Closed, Adjustment Method Not Applicable, Number of Ways One-Way, Valve Cavity Size C08-2, Actuation Mechanism Pressure, Overall Length 1.51 in, Overall Width 0.875 in, Overall Height 0.45 in, Flow Rate - Maximum 10 gpm, Voltage Not Applicable, Pressure Setting - Maximum 5,000 psi, Port Connection Dash Size Not Applicable, Valve Type Standard Cartridge Check Valve, Port Connection Type Not Applicable
