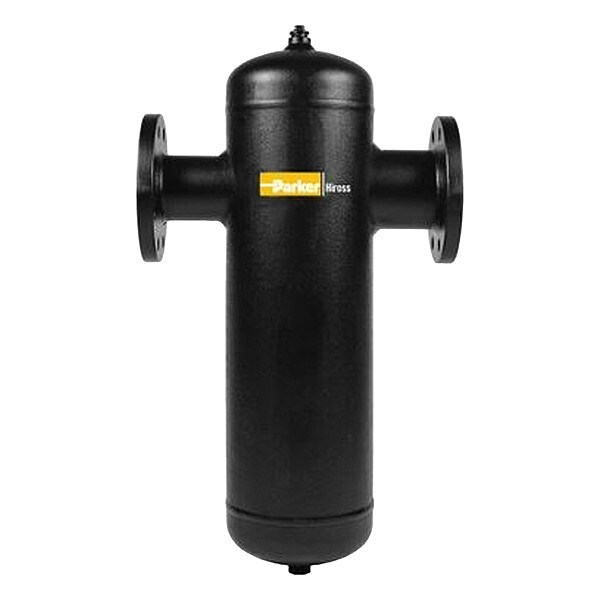

COMPRESSED AIR WATER SEPARATOR
Mfr # DH-WSA3000-F
Zoro # G411618570
product price:Â $21,292.99
/ea
Additional $110.00 delivery surcharge applies per item.
Key Features
Type
Water Separator
Includes
Float Drain
Minimum Operating Temperature
35 Degrees F
Minimum Operating Pressure
15 psig
Weight
550 lb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DH-WSA3000-F
- Zoro #
- G411618570
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Air Outlet Size
- 8 in
- Overall Width
- 29 in
- Overall Length
- 66 5/8 in
- Air Inlet Size
- 8 in
- Overall Depth
- 18 in
Details
- Item
- Compressed Air/Water Separator
- Type
- Water Separator
- Includes
- Float Drain
- Minimum Operating Temperature
- 35 Degrees F
- Minimum Operating Pressure
- 15 psig
- Weight
- 550 lb
- Air Outlet Type
- Flange
- Maximum Operating Temperature
- 140 Degrees F
- Filtered Substance
- Water
- Drain Included
- Yes
- Drain Type
- Automatic
- Maximum Operating Pressure
- 232 psig
- Standards
- ASME, ISO 8573-1
- Air Inlet Type
- Flange
- Maximum Flow Rate
- 6,300 scfm
- Body Material
- Carbon Steel
- For Fluid Type
- Compressed Air
- For Substance Type
- Air
- Maximum Flow @ 100 psi
- 6,300 cfm
Description
Compressed Air/Water Separator, Air Inlet Size 8 in, Air Inlet Type Flange, Maximum Flow @ 100 psi 6,300 cfm, Maximum Flow Rate 6,300 scfm, Maximum Operating Pressure 232 psig, Minimum Operating Temperature 35 Degrees F, Type Water Separator, Overall Length 66 5/8 in, Weight 550 lb, Air Outlet Size 8 in, Air Outlet Type Flange, Body Material Carbon Steel, Drain Included Yes, Drain Type Automatic, Filtered Substance Water, For Fluid Type Compressed Air
