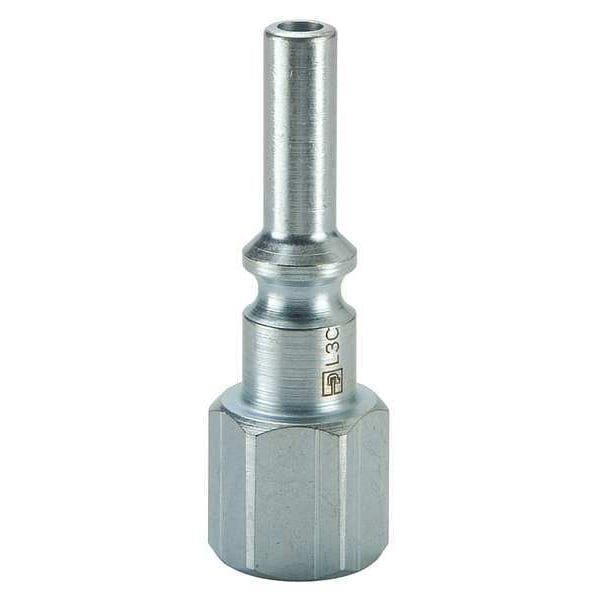

Coupler Plug, Steel, FNPT, 1/4 In. Pipe
Mfr # L3C
Zoro # G4874371
Key Features
Specifications
Product Information
- MFR #
- L3C
- Zoro #
- G4874371
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Overall Length
- 2 1/8 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Max. Outside Dia.
- 11/16 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Lincoln
- Material
- Steel
- Coupling Component
- Plug
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Finish/Coating
- Trivalent Chrome
- Max. Flow Rate
- 707.92 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Nitrile
- Includes Valve
- No
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- Pneumatic
- Barbed
- No
- Max. Working Pressure @ 70 F
- 300 psi
- Connection Thread Type
- NPT
Description
The PARKER - L3C is a quick connect hose coupling intended for pneumatic service. It supports tool-free connection and disconnection using the sleeve locking mechanism. Constructed from steel with a trivalent chrome finish, it provides a sealed connection (per specified seal material: Nitrile) for compatible pneumatic couplings. The coupling is compatible with 1/4-inch NPT threaded connections and female hose fittings, supporting a maximum working pressure of 300 psi and a maximum flow rate of 707.92 liters per minute. Its operating temperature range spans from -40°F to 250°F, with a maximum outside diameter is 11/16 in and overall length is 2.13 in.
Key Features:
- Application: Pneumatic service
- Body size and coupling size: 1/4 in
- Connection type: 1/4" -18 NPT thread
- Coupling component: Plug with sleeve locking type
- Hose fitting gender and size: Female, 1/4 in
- Material: Steel with trivalent chrome finish
- Seal material: Nitrile
- Max. working pressure at 70°F: 300 psi
- Max. flow rate: 707.92 lpm
- Temperature range: -40°F to 250°F
- Max. outside diameter: 11/16 in
- Overall length: 2 1/8 in
- Includes valve: No
- Interchange type: Lincoln
