Coupler Body, Steel, MNPT, 3/8 In. Pipe
Mfr # EZ-371-6MP
Zoro # G4874125
Key Features
Specifications
Product Information
Dimensions
Details
Description

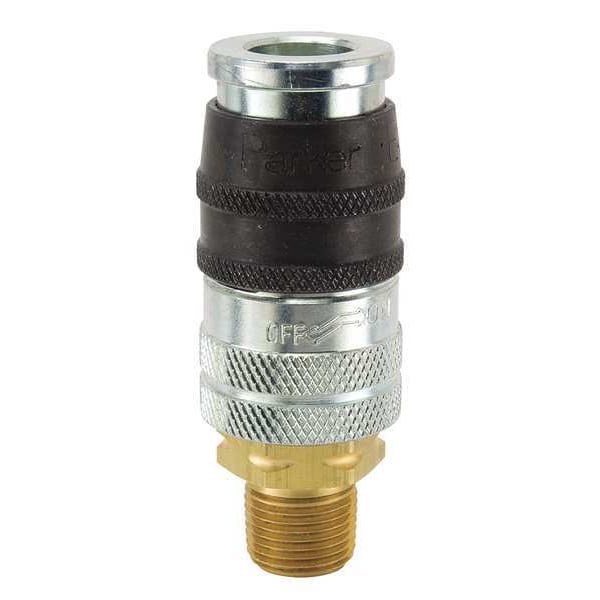

The PARKER - EZ-371-6MP is a quick connect hose coupling for pneumatic applications. The coupling is constructed of steel with a trivalent chrome finish and includes a valve component with a tubular valve type. It forms a connection intended to be compatible with pneumatic hose coupling seals. It is specified for use with Industrial interchange (as defined by the manufacturer’s interchange specification) and uses a push-to-connect locking mechanism for hose coupling engagement. The fitting has a male hose fitting gender with a 3/8 in size and a 3/8 in body size for quick connect air couplings.
Key Features:
- Application: Pneumatic systems
- Material: Steel with trivalent chrome finish
- Connection Type: NPT with 3/8"-18 thread size
- Hose Fitting Size: 3/8 in, Male gender
- Coupling Component: Socket
- Coupling Locking Type: Push-to-Connect
- Coupling Size: 3/8 in
- Includes Valve: Yes, Tubular valve type
- Interchange Type: Industrial
- Maximum Flow Rate: 1,415.84 liters per minute (lpm)
- Maximum Working Pressure: 300 psi at 70°F
- Operating Temperature Range: -40°F to 250°F
- Maximum Outside Diameter: 1 3/16 in
- Overall Length: 3 1/8 in
- Seal Material: Nitrile
- Barbed Hose Tail: No
