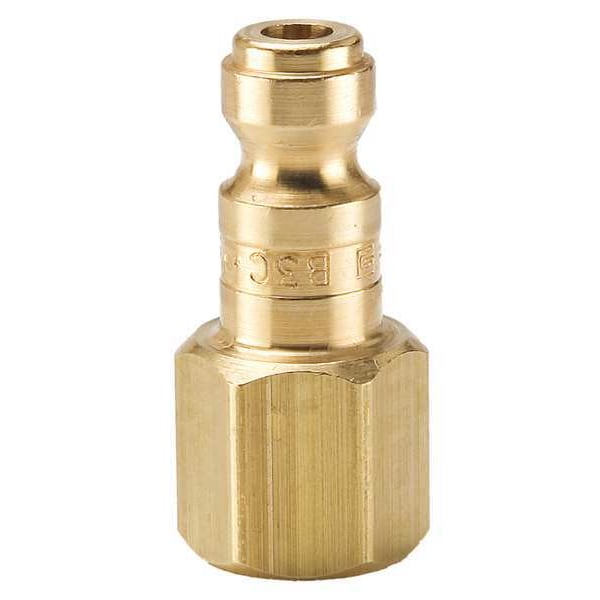

Coupler Plug, Brass, FNPT, 1/4 In. Pipe
- Mfr # B3C
- Zoro # G4874816
Key Features
Specifications
Product Information
- MFR #
- B3C
- Zoro #
- G4874816
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Overall Length
- 1 1/2 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Max. Outside Dia.
- 3/4 in
- Wire Rope Length
- 1 1/2 in
- Length
- 1 1/2 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Tru-Flate Automotive
- Material
- Brass
- Coupling Component
- Plug
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Max. Flow Rate
- 707.92 lpm
- Seal Material
- Nitrile
- Includes Valve
- No
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- Pneumatic
- Barbed
- No
- Max. Working Pressure @ 70 F
- 300 psi
- Connection Thread Type
- NPT
- Shell Material
- Brass
Description
The PARKER - B3C is designed for pneumatic hose connections with a push/pull locking mechanism for tool-free connection and disconnection of hoses and equipment. It features a push/pull locking mechanism for connection using nitrile seals (no guarantee of leak resistance). Constructed from brass with nitrile seals, it has a specified maximum flow rate of 707.92 L/min and a specified maximum working pressure of 300 psi at 70°F. This coupling is listed as compatible with Tru-Flate-Automotive interchange standards (no performance assurance beyond interchange) and does not include a valve component (as stated).
Key Features:
- Body size and coupling size: 1/4 in
- Hose fitting size: 1/4 in, female connection
- Connection type: 1/4"-18 NPT thread
- Material: Brass construction with nitrile seal material
- Maximum flow rate: 707.92 lpm
- Maximum working pressure: 300 psi @ 70°F
- Overall length: 1.50 in
- Maximum outside diameter: 3/4 in
- Temperature range: -40°F to 250°F
- Barbed: No
