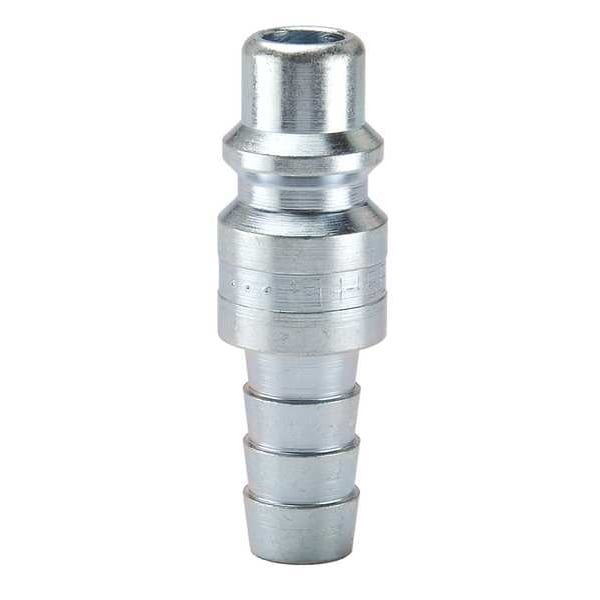

Coupler Plug, Steel, Hose Barb, 25 cfm
Mfr # H9C
Zoro # G4874037
Key Features
Specifications
Product Information
Dimensions
Details
Description
The PARKER - H9C is a push/pull locking quick-connect coupling for connection and disconnection without tools. The coupling is a male plug type specified for pneumatic applications. It is made of steel with a trivalent chrome finish and is intended to form a seal when connected to compatible air hoses under the specified maximum working pressure and temperature conditions. It is rated for use with hoses having a 3/8 in inner diameter and is provided with a hose barb for attachment to compatible hoses. The fitting is made to be compatible with Industrial interchange standards and does not include an integrated valve.
Key Features:
- Application: Pneumatic
- Hose Barb connection type with 3/8 in barb size
- Hose Fitting Gender: Male
- Body and Coupling Size: 1/4 in
- Maximum rated working pressure: 300 psi at 70°F (do not exceed rating)
- Maximum rated flow rate: 707.92 liters per minute (based on specified conditions)
- Material: Steel with trivalent chrome finish
- Rated operating temperature range: -40°F to 250°F
- Overall length: 1.94 in
- Maximum outside diameter: 1/2 in
- Includes no valve component
- Barbed design for hose fitting
- Industrial interchange compatibility
