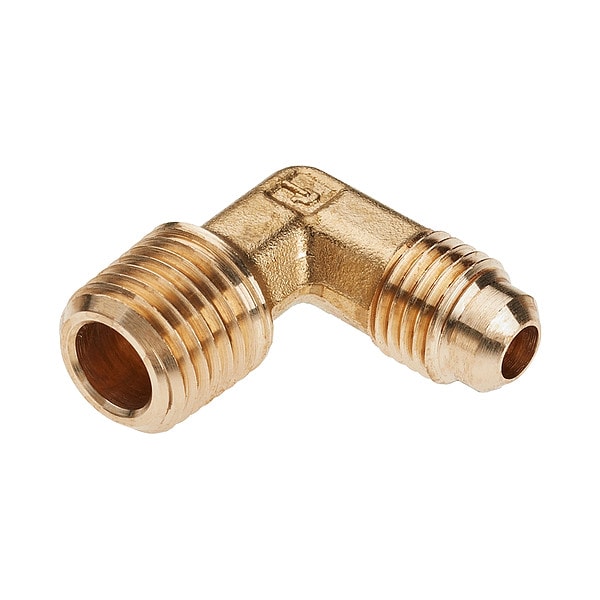

Elbow, Brass, Flared 1/4 in, MNPT 1/4 in
Mfr # VS149F-4-4
Zoro # G812041731
product price:Â
$
3.73
/ea
Key Features
Specific Fitting Shape
90 Degrees Flare Male Elbow
Standards
SAE J512, SAE J513, UL Listed
Hex Size
3/8 in
Overall Length
29/32 in
Flare Angle
45 Degrees
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- VS149F-4-4
- Zoro #
- G812041731
- UPC #
- -
- Country of Origin
- United States
- Item
- Flared Fitting Elbow
- Specific Fitting Shape
- 90 Degrees Flare Male Elbow
- Standards
- SAE J512, SAE J513, UL Listed
- Flare Angle
- 45 Degrees
- Maximum Operating Temperature
- 250 Degrees F
- Fitting Material
- Brass
- Minimum Operating Temperature
- -65 Degrees F
- Maximum Operating Pressure
- 1,400 psi
- Fitting Side A Connection Type
- Flared
- Compatible Tube Material
- Aluminum, Brass, Copper, Welded Steel
- Resistance Properties
- Mechanical Pull Out-Resistant
- Fitting Side B Connection Type
- MNPT
- Application
- Refrigeration
- Operating Temperature - Maximum
- 250 Degrees F
- Product Type
- Flared Fitting Adapter
- Operating Pressure - Maximum
- 1,400 psi
- Operating Temperature - Minimum
- -65 Degrees F
- Connector Type
- Adapter
- For Media Type
- Fuels, Gases
- Fitting Side 2 Connection Type
- MNPT
- Material Grade
- CA360
- Fitting Shape
- 90 Degrees Elbow
- Fitting Side 1 Connection Type
- Flared
Description
Flared Fitting Elbow, Fitting Material Brass, Flare Angle 45 Degrees , Application Refrigeration, Fitting Side A Connection Type Flared, Fitting Side B Connection Type MNPT, Fitting Side A Pipe Size 1/4 in, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Side B Tube Outer Diameter 1/4 in, Fitting Thread Size 7/16 In.-20, Hex Size 3/8 in, Maximum Operating Pressure 1,400 psi, Maximum Operating Temperature 250 Degrees F, Overall Length 29/32 in
