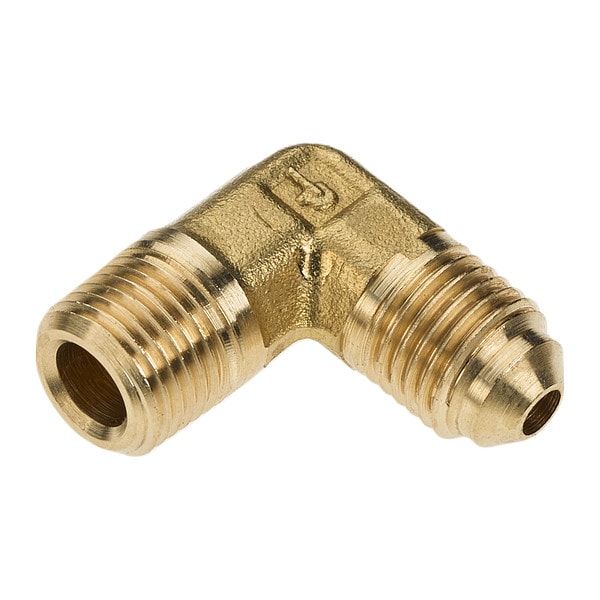

Elbow, Brass, Flared3/16in, MNPT1/8in
- Mfr # 149F-3-2
- Zoro # G410919876
product price:Â
$
3.45
/ea
Zoro's best price: not eligible for any other offers or promotions
Key Features
Specific Fitting Shape
90 Degrees Forged Elbow
Maximum Operating Temperature
250 Degrees F
Fitting Side B Connection Type
MNPT
Fitting Thread Size
3/8"-24
Standards
SAE J512, SAE J513, UL Listed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 149F-3-2
- Zoro #
- G410919876
- UPC #
- -
- Country of Origin
- United States
- Item
- Flared Fitting Elbow
- Specific Fitting Shape
- 90 Degrees Forged Elbow
- Maximum Operating Temperature
- 250 Degrees F
- Fitting Side B Connection Type
- MNPT
- Standards
- SAE J512, SAE J513, UL Listed
- Flare Angle
- 45 Degrees
- Minimum Operating Temperature
- -65 Degrees F
- Fitting Material
- Brass
- Maximum Operating Pressure
- 2,800 psi
- Fitting Side A Connection Type
- Flared
- Application
- Food Process
- Operating Temperature - Maximum
- 250 Degrees F
- Operating Pressure - Maximum
- 2,800 psi
- Fitting Side 2 Connection Type
- MNPT
- Fitting Shape
- 90 Degrees Elbow
- Operating Temperature - Minimum
- -65 Degrees F
- Material Grade
- CA360
- Connector Type
- Adapter
- For Media Type
- Gases
- Product Type
- Flared Fitting Adapter
- Fitting Side 1 Connection Type
- Flared
Dimensions
- Fitting Thread Size
- 3/8"-24
- Hex Size
- 3/8 in
- Fitting Side A Tube Outer Diameter
- 3/16 in
- Fitting Side A Pipe Size
- 3/16 in
- Fitting Side 1 Tube Outer Diameter
- 3/16 in
- Fitting Side 2 Pipe Size
- 1/8 in
Description
Flare Couplings, Adapters, Uni
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
