Shop PARKER

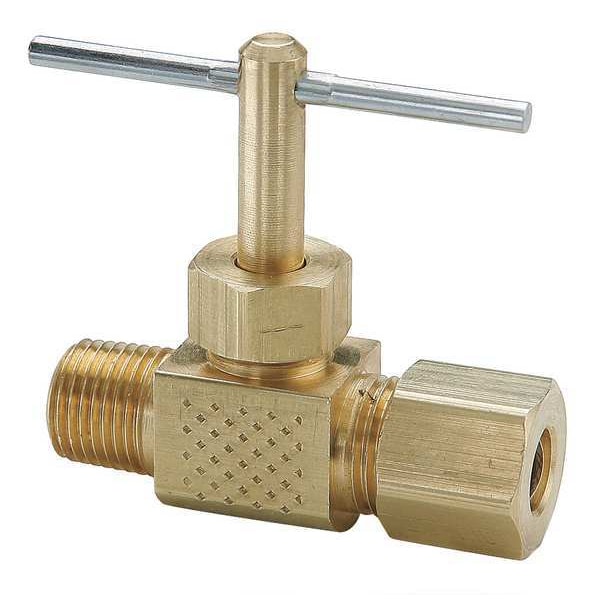

Needle Valve, 3/8In, Compression-Male Pipe

  • Mfr # NV106C-6-4

  • Zoro # G3965626

product price:
$
16.15
/ea

Key Features

Pipe Size
3/8"
Connection
Compression to Male Pipe
Body Material
Brass
Max. Height
1-3/8"
Temp. Rating
-45 Degrees to 250 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NV106C-6-4
Zoro #
G3965626
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
3/8"
Max. Height
1-3/8"
Length
1-9/16"
Handle Length
1.38 in
Nominal Valve Size
1/4 in
Overall Length
1.75 in
Maximum Height
1 1/2 in
Connection Size - Side 1
3/8 in
Connection Size - Side 2
1/4 in
Wire Rope Length
1.75 in

Details

Connection
Compression to Male Pipe
Body Material
Brass
Item
Needle Valve
Temp. Rating
-45 Degrees to 250 Degrees F
Stem Type
Brass
Handle Material
Zinc Plated Steel
Standards
ISO 14001, ISO 9001, RoHS
Seal Material
Neoprene
Valve Body Style
Inline
Handle Type
Tee
Operating Temperature - Minimum
-45 Degrees F
Bonnet Style
Screw-In
Connection Gender - Side 2
Male
Connection Type - Side 1
Compression
For Media
Water
Connection Gender - Side 1
Female
Operating Temperature - Maximum
250 Degrees F
Connection Type - Side 2
IPS
Maximum Pressure - Operating
150 psi
Stem Material
Brass
Valve Series
NV

Description

Needle Valve, Body Material Brass, Pipe Size 3/8 in, Compression to Male Pipe Connection, Stem Type Brass, Seal Material Neoprene, Handle Material Zinc-Plated Steel, Temp. Rating -45 Degrees to 250 Degrees F, Max. Height 1 3/8 in, Length 1 9/16 in, Standards ISO 14001, ISO 9001, RoHS
