Parker

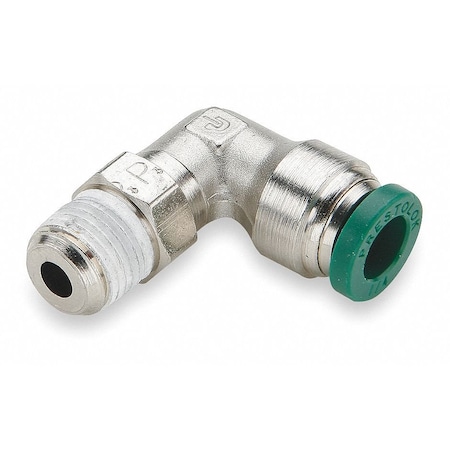

Nickel Plated C37700 Brass Swivel Elbow, Push-to-Connect x MNPTF, 1 PK (Discontinued)

Key Features

  • Tube Fitting Material Nickel Plated Brass
  • Specific Fitting Shape 90 Degrees Swivel Elbow
  • Fitting Connection Type Tube x MNPT
  • Tube Size 1/4 in
  • Pipe Size - Pipe Fitting 1/4 in
See all product information

Product Information

Dimensions

Tube Size 1/4 in
Pipe Size - Pipe Fitting 1/4 in
Hex Size 9/16 in
Pipe Size (Fittings) 1/4"
Pipe Size 1/4 in
Overall Length 27/32 in
Fitting Side B Pipe Size 1/4 in
Fitting Side A Tube Outer Diameter 1/4 in
Fitting Thread Size 1/4
Fitting Pipe Size 1/4 in
For Tube Outside Diameter 1/4 in

Details

Item Swivel Elbow
Tube Fitting Material Nickel Plated Brass
Specific Fitting Shape 90 Degrees Swivel Elbow
Fitting Connection Type Tube x MNPT
Max. Pressure 300 psi
Specific Pipe Fitting Shape 90 Degree Swivel Elbow
Basic Pipe Fitting Shape Elbow
Pipe Fitting Connection Type Tube x MNPT
Temp. Range 0 Degrees to 200 Degrees F
Basic Pipe Fitting Material Metal
Color Silver
Connection Type Push-to-Connect x MNPTF
System of Measurement Imperial
Application Air, Inert Gases, Oils, Vacuum
Standards Certificate of Registration for Albion, Certificate of Registration for Lakeview, Certificate of Registration for Otsego, Conflict Minerals Statement Parker Fluid System Connectors Division, FSC REACH Product Declaration, IN, Management System Cer, MI
Resistance Properties Corrosion-Resistant
Includes Pre-Applied Thread Sealant Yes
Fitting Material Brass
Minimum Operating Temperature 0 Degrees F
Finish/Coating Nickel Plated
Fitting Side A Connection Type Push-to-Connect
Maximum Operating Pressure 300 psi
Vacuum Rating 28 inHg
Compatible Tube Hardness 95 Shore A
Release Type Button
Thread Sealant Type White Acrylic
Fitting Side B Connection Type MNPTF
Maximum Operating Temperature 200 Degrees F
Compatible Tube Material Polyethylene, Polypropylene, Polyurethane, Rigid Nylon, Semi-Rigid Nylon
For Tube OD 1/4 in
Fitting Shape Elbow
End Connection Type Push-to-Connect, Threaded
Fitting Body Material Nickel Plated Brass

Description

Swivel Elbow, Application Air, Inert Gases, Oils, Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MNPTF, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Material Brass, Fitting Thread Size 1/4, Color Silver, Includes Pre-Applied Thread Sealant Yes, Maximum Operating Pressure 300 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 27/32 in, Specific Fitting Shape 90 Degrees Swivel Elbow, Release Type Button
