Shop PARKER

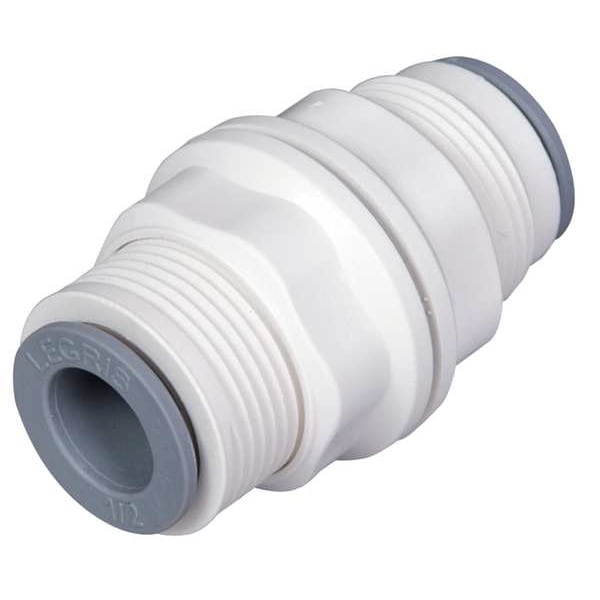

Push-Fit Union Fitting, 1/2 in Tube Size, Bio-Based Nylon, White, 5 PK

  • Mfr # 6316 62 00WP2
  • Zoro # G0622842
product price:
$
35.75
/pk of 5, $7.15/ea

Key Features

Tube Fitting Material
Nylon
Specific Fitting Shape
Straight Bulkhead Union
Fitting Connection Type
Tube
Tube Size
1/2 in
Max. Pressure
160 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
6316 62 00WP2
Zoro #
G0622842
UPC #
820099872834
Country of Origin
Mexico
Item
Push-Fit Union Fitting
Tube Fitting Material
Nylon
Specific Fitting Shape
Straight Bulkhead Union
Fitting Connection Type
Tube
Max. Pressure
160 psi
Basic Pipe Fitting Material
Plastic
Pipe Fitting Connection Type
Tube
Temp. Range
35 Degrees to 200 Degrees F
Color
White
Standards
FDA Approved, NSF/ANSI 51, NSF/ANSI 61
Specific Pipe Fitting Shape
Bulkhead Union
Basic Pipe Fitting Shape
Union
System of Measurement
Imperial
Application
Vacuum
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Resistance Properties
Chemical-Resistant, Mechanical-Resistant
Fitting Material
Bio-Based Nylon
Maximum Operating Pressure
230 psi
Fitting Side A Connection Type
Push-to-Connect
Compatible Tube Material
Polyethylene
Maximum Operating Temperature
200 Degrees F
Minimum Operating Temperature
35 Degrees F
Release Type
Button
Fitting Side B Connection Type
Push-to-Connect
Fitting Shape
Union
Fitting Side 2 Connection Type
Push-to-Connect
Series
Legris
Operating Temperature - Minimum
35 Degrees F
Connector Type
Union
Operating Pressure - Maximum
230 psi
Operating Temperature - Maximum
200 Degrees F
Fitting Side 1 Connection Type
Push-to-Connect
For Media Type
Beverages, Food, Gases, Potable Water

Description

Push-Fit Union Fitting, Application Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 1/2 in, Fitting Side B Tube Outer Diameter 1/2 in, Fitting Material Bio-Based Nylon, Material Grade Not Applicable, Color White, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 230 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 2 1/4 in
