Shop PARKER

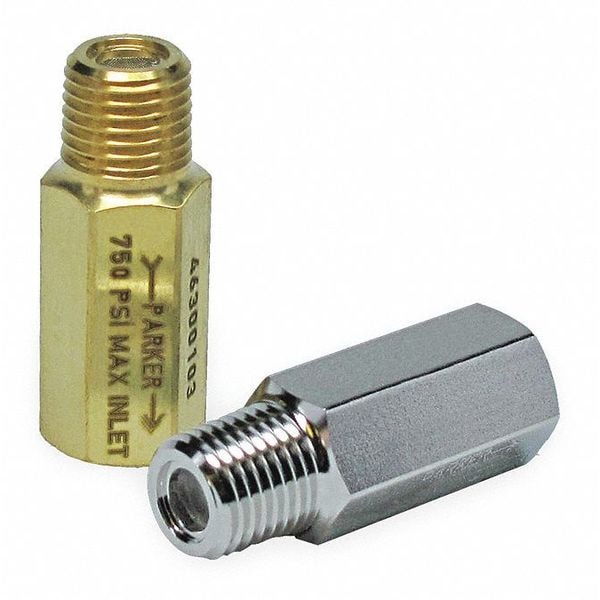

Safety Relief Valve, Overall 1-45/64" L

  • Mfr # VR744MF2SV

  • Zoro # G5129673

product price:  $180.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1/4"
Outlet Size
1/4"
Body Material
316 Stainless Steel
Outlet Type
FNPT
Inlet Type
MNPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VR744MF2SV
Zoro #
G5129673
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4"
Outlet Size
1/4"
Overall Length
1 11/16 in
Overall Height
5/8 in
Outlet Connection Size
1/4 in
Inlet Connection Size
1/4 in

Details

Body Material
316 Stainless Steel
Item
Safety Relief Valve
Outlet Type
FNPT
Inlet Type
MNPT
Factory Set Pressure
100 psi
Spring Material
302 Stainless Steel
Standards
CRN
Pressure Range
20 to 100 psi
Application
Gas Cabinets, Gas Sample Preparation, Upstream Process Lines, Valve Manifold Boxes (VMB)
Test Lever
Test Lever Not Included
Compliance
ISO 9001
Seat Material
FKM
Temp. Range
-30 Degrees to 400 Degrees F
Product Type
Pressure Relief Valve
Operating Temperature - Maximum
400 Degrees F
For Media
Gas
Pilot Adjustment - Maximum
100 psig
Inlet Connection Gender
Male
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Pilot Adjustment - Minimum
20 psig
Operating Temperature - Minimum
-30 Degrees F
Operating Pressure - Maximum
114 psi
Outlet Connection Gender
Female
Operating Pressure - Minimum
35 psi

Description

Safety Relief Valve, Body Material 316 Stainless Steel, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 1/4 in, Outlet Size 1/4 in, Factory Set Pressure 100 psig, Pressure Range 20 to 100 psi, Overall Height 5/8 in, Application Gas Cabinets, Gas Sample Preparation, Upstream Process Lines, Valve Manifold Boxes (VMB), Overall Length 1 11/16 in, Seat Material FKM, Spring Material 302 Stainless Steel, Temp. Range -30 Degrees to 400 Degrees F, Test Lever Test Lever Not Included, Compliance ISO 9001

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
