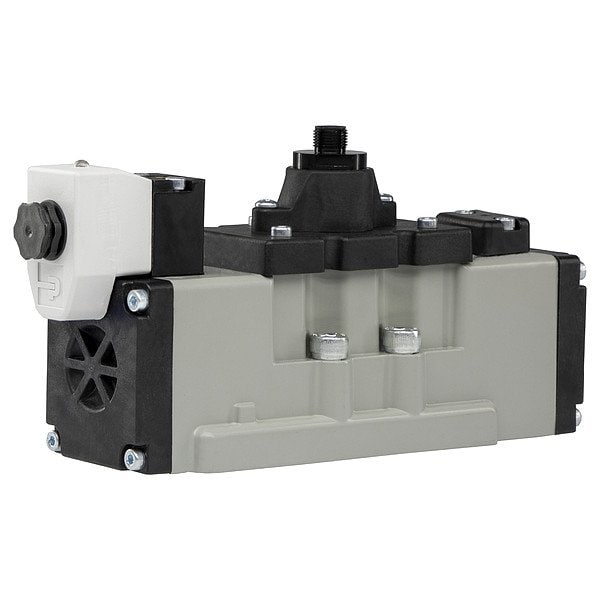

Solenoid Air Con Valve, Four-Way, 145 psi
Mfr # H3EWXBG323000FD
Zoro # G910412105
product price:Â
$
412.99
/ea
Free Shipping & Returns
Key Features
Body Style
Base-Mounted
Series
ISO
Voltage
120V AC
Valve Actuator / Return
Spring
Pilot Pressure
35 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- H3EWXBG323000FD
- Zoro #
- G910412105
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Height
- 2 1/2 in
- Overall Width
- 1 7/8 in
- Overall Length
- 5 31/32 in
- Pilot Port Size
- 3/4 in
- Pilot Port Connection Size
- 3/4 in
- Wire Rope Length
- 5 31/32 in
- Length
- 5 31/32 in
Description
Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 120V AC, Center Position Not Applicable, Valve Actuator / Return Spring, ISO Class 5599-1, Operational Pressure Range Vacuum to 145 psi, Body Style Base-Mounted, Pilot Port Size 3/4 in, Pilot Pressure 35 psi, Non Plug-In Electrical Connections, Shifting Technology Solenoid, Power Consumption 4.5 W, Ambient Temp. Range 5 Degrees to 120 Degrees F, Override Non-Locking, Overall Height 2 1/2 in, Overall Length 5 31/32 in
