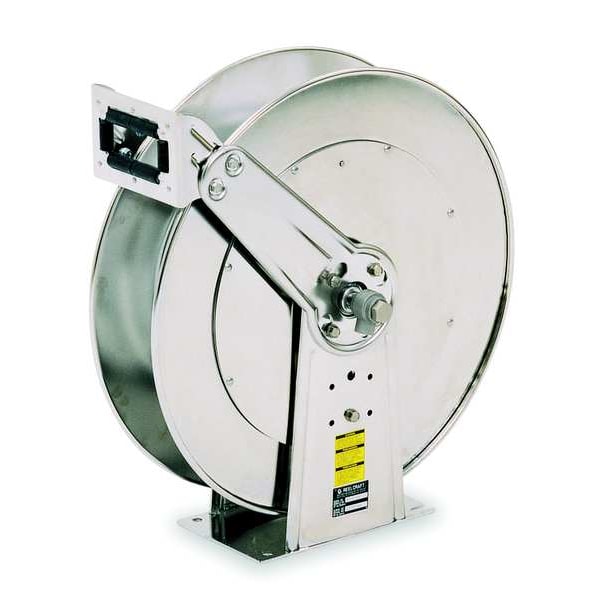

Spring Return Hose Reel, 3/4 in Hose Diameter, 75 ft Length, 500 psi Max. Pressure, Stainless Steel

  • Mfr # D83000 OLS

  • Zoro # G0536146

product price:
$
2,535.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
500 psi
Drive Type
Spring Return
Enclosed
No
Hose Inside Dia.
3/4 in
Hose End Configuration
3/4 in (F)NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D83000 OLS
Zoro #
G0536146
UPC #
699567010746
Country of Origin
United States

Dimensions

Hose Inside Dia.
3/4 in
Overall Height
25 3/8 in
Hose Length
75 ft
Overall Width
13 in
Overall Length
24 in
Reel Diameter
15 1/2 in
Reel Width
13 in
Height
24 1/8 in
Length
25 3/8 in
Swivel Outlet Thread Size
3/4 in - 14
Mount Base Height
12 in
Mount Base Width
9 3/8 in
Mounting Hole Center to Center Height
7 7/8 in
Swivel Inlet Size
3/4 in
Overall Dimensions
24 in L x 13 in W x 25 3/8 in H
Swivel Inlet Thread Size
3/4 in - 14
Mount Hole Diameter
1/2 in
Mounting Hole Center to Center Width
10 1/2 in
Swivel Outlet Size
3/4 in
Wire Rope Length
24 in

Details

Item
Spring Return Hose Reel
Max. Pressure
500 psi
Drive Type
Spring Return
Enclosed
No
Hose End Configuration
3/4 in (F)NPT
Mounting
Ceiling, Floor, Wall
Reel Color
Silver
Features
Heavy Duty Stainless Steel Reel
Media - Hose Reels
Air, Mild Chemical, Water
Application
Air, Water, Solvent, Chemical Transfer Applications in Food Processing, Pre-rinse, Washdown, Chemical Transfer, Industrial Solvent Handling Markets, Wall, Floor, Ceiling and Truck Mounting
Swivel Material
Stainless Steel
Latch
Locking
Housing Material
Stainless steel
Reel Inlet
3/4 in (F)NPT
Seal Type
Viton(R)
Hose Outlet
3/4 in (M)NPT
Bearings
Permanently Lubricated
Finish - Hose Reels
Stainless Steel
Duty Rating
Heavy Duty
Max. Temp.
150 Degrees F
Weight
84 lb
Latch Type
Spring Loaded
Twin Hose Compatible
No
Swivel Inlet Gender
Female
Corrosion-Resistant
Yes
Reel Material
Stainless Steel
Hose Reel Primary Application
Washdown
Minimum Operating Temperature
-25 Degrees F
For Dual Hose
No
Swivel Outlet Gender
Female
Reel Finish
Polished
Bearing Construction
Ball
Hose Capacity
75 ft (3/4 in I.D.)
Swivel Inlet Type
NPT
Base Motion Type
Stationary
Pedestal Type
Dual Pedestal
Includes Leader Hose
No
Includes Hose
No
Swivel Outlet Type
NPT
Maximum Operating Pressure
500 psi
Speed Limited Retraction
No
Number of Mount Holes
4
Hose Reel Type
Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel
Maximum Operating Temperature
210 Degrees F
Number of Guide Arms
Double Arm
Fasteners Included
No
Type
Stainless Steel, Auto Retractable

Description

Spring Return Hose Reel, Washdown, Maximum Operating Pressure 500 psi, Hose Capacity 75 ft (3/4 in I.D.), Drive Type Spring Return, Corrosion-Resistant Yes, Enclosed No, For Dual Hose No, Hose Reel Type Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel, Includes Hose No, Mounting Location Ceiling, Floor, Wall, Pedestal Type Dual Pedestal, Number of Guide Arms Double Arm, Overall Height 25 3/8 in, Overall Length 24 in, Overall Width 13 in, Reel Material Stainless Steel, Reel Finish Polished
