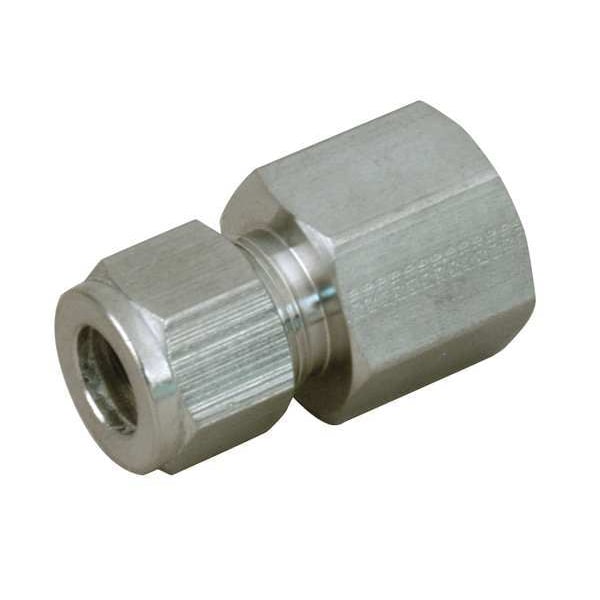

Strt, Steel, Comp. 3/4 in, MNPT 3/4 in
- Mfr # 12FSC8N-S
- Zoro # G6165451
product price:Â
$
34.19
/ea
Key Features
Specific Pipe Fitting Shape
Connector
Pipe Fitting Connection Type
A-LOK(R) x FNPT
Basic Pipe Fitting Material
Metal
Temp. Range
-20 Degrees to 800 Degrees F
Pipe Size (Fittings)
1/2"
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Dimensions
- Pipe Size (Fittings)
- 1/2"
- Compression Thread Size
- 3/4 in
- Tube Size
- 3/4 in
- Pipe Size - Pipe Fitting
- 1/2 in
- Hex Size
- 1 1/16 in
- Fitting Side B Pipe Size
- 1/2 in
- Thread Size A
- 1-20
- Overall Length
- 1 27/32 in
- Fitting Side A Tube Outer Diameter
- 3/4 in
- Pipe Size
- 1/2"
- Fitting Side 2 Pipe Size
- 1/2 in
- Fitting Side 1 Tube Outer Diameter
- 3/4 in
- Thread Size 1
- 1-20
- Wire Rope Length
- 1 27/32 in
- Length
- 1 27/32 in
Description
Compression Fitting Adapter, Application Compressed Natural Gas, Fuels, Gases, Hydrogen, Liquids, Oils, Petroleum Oil, Steam, Fitting Side A Connection Type Compression, Fitting Side B Connection Type FNPT, Finish/Coating Zinc Plated, Fitting Material Steel, Fitting Side A Tube Outer Diameter 3/4 in, Maximum Operating Pressure 5,800 psi, Maximum Operating Temperature 800 Degrees F, Overall Length 1 27/32 in, Specific Fitting Shape Straight Adapter, Fitting Side B Pipe Size 1/2 in
