  11. Tubing, Nylon, 1/4" OD, Black, 50 Ft

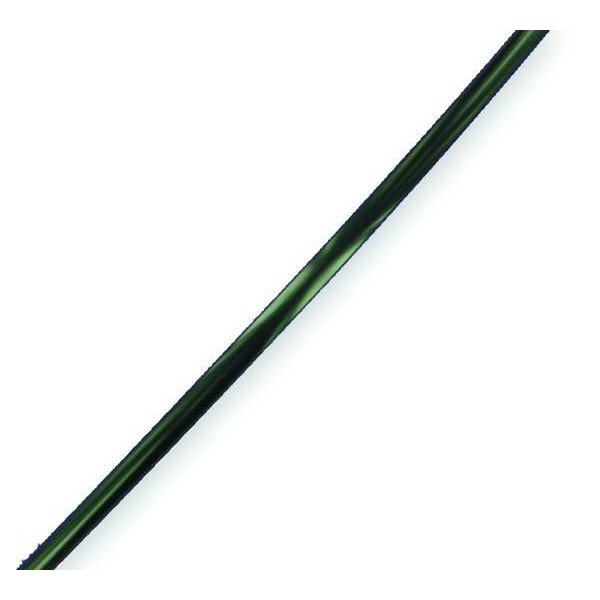

Parker Tubing, Nylon, 1/4" OD, Black, 50 Ft NBR-4-035-0050 - main

Tubing, Nylon, 1/4" OD, Black, 50 Ft

  • Mfr # NBR-4-035-0050

  • Zoro # G2855377

product price: $46.69
/ea

Key Features

Tube Material
Nylon
Inside Dia.
3/16 in
Outside Dia.
1/4 in
Wall Thickness
0.035 in
Max. Pressure
425 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NBR-4-035-0050
Zoro #
G2855377
UPC #
-
Country of Origin
United States

Dimensions

Inside Dia.
3/16 in
Outside Dia.
1/4 in
Wall Thickness
0.035 in
Tube Length
50 ft
Inside Diameter
3/16 in
Outside Diameter
1/4 in
Bend Radius
1 in
Overall Length
50 ft

Details

Tube Material
Nylon
Max. Pressure
425 psi
Tube Color
Black
Vacuum Rating
28 in Hg
Type
High Strength, Semi-Rigid
Temp. Range
-60 Degrees F to 200 Degrees F
Burst Pressure
1,700 psi
Item
Tubing
Material
Nylon
Color
Black
Stripe Color
No Stripe
For Fluid Type
Oil
Maximum Operating Pressure
425 psi @ 73 Degrees F
Jacket Color
No Jacket
Features
High Tensile Strength and Excellent Coupling Retention, Low Moisture Absorption
Flexibility
Semi-Rigid
Fitting Compatibility
Compression, Push-to-Connect
Minimum Operating Temperature
-60 Degrees F
Clarity
Opaque
Chemical Compatibility
Chlorine, Ether, Iodine, Nitric Acid 35%, Zinc Chloride
Vacuum Rated
Vacuum Rated
Resistance Properties
Abrasion Resistant, Chemical Resistant
Industry Application
Machine Tool Systems, Marine Control Systems
For Environment
High Pressure, High Temperature, High Vibration
Application
Beverage, Chemical, Food, Water
Jacket Material
No Jacket
Reinforcement
Not Reinforced
Peristaltic Pump Compatible
No
System of Measurement
Inch
Petroleum Product Compatibility
Lubricants
Tube Form
Straight
Weight per Foot
0.011 lb/ft
Maximum Operating Temperature
200 Degrees F
Autoclavable
No
Maximum Vacuum Pressure
28 in Hg
Hardness
Shore D 72
Flow Application
Oil/Chemical Process Lines
Beverage, Food, and Water Compatibility
Beer, Citric Acid, Dairy, Dextrose, Distilled Water, Fructose, Glycerin, Linseed Oil, Milk, Non-Potable Water, Oils and Fats, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar
Food and Beverage Compatibility
Beer, Citric Acid, Dairy, Dextrose, Distilled Water, Fructose, Glycerin, Linseed Oil, Milk, Non-Potable Water, Oils and Fats, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar

Description

Tubing, Application Beverage, Chemical, Food, Water, Color Black, Hardness Shore D 72, Inside Diameter 3/16 in, Jacket Color No Jacket, Jacket Material No Jacket, Material Nylon, Material Trade Name Not Applicable, Material Trade Number Not Applicable, Maximum Operating Pressure 425 psi @ 73 Degrees F, Maximum Operating Temperature 200 Degrees F, Maximum Vacuum Pressure 28 in Hg, Outside Diameter 1/4 in, Overall Length 50 ft, Peristaltic Pump Compatible No, PEX Type Not Applicable
