Shop PASS & SEYMOUR

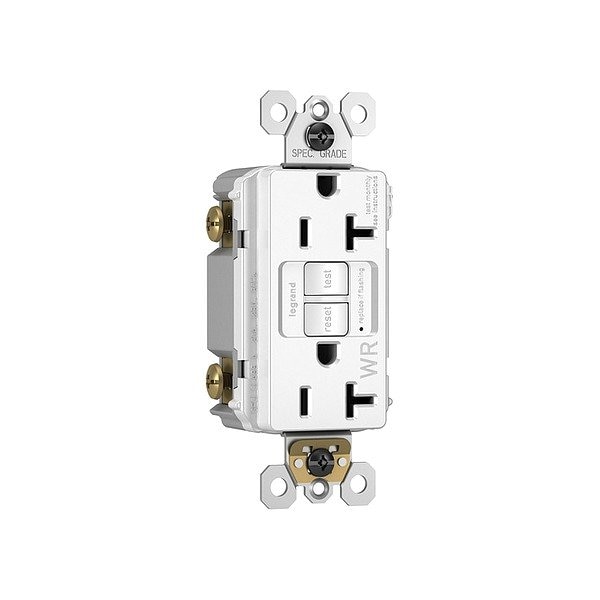

DuplexGFCIRcptcl, 20A, 125VAC, Wht, Plastic

  • Mfr # 2097TRWRW
  • Zoro # G516332760
product price:
$
28.55
/ea

Key Features

Current Rating
20 A
GFCI
Yes
Grounding
Grounded
Housing Color
White
Housing Material
Thermoplastic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2097TRWRW
Zoro #
G516332760
UPC #
785007036107
Country of Origin
China

Dimensions

Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Width
0.9 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Duplex GFCI Receptacle
Current Rating
20 A
GFCI
Yes
Grounding
Grounded
Housing Color
White
Housing Material
Thermoplastic
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Standards
Conforms to NEMA WD-1 and WD-6, CSA-C22.2 No. 144 GFCIs, cULus Listed File Number E42190, Standard CSA-C22.2 No. 42, Standard UL 498, UL Listed, UL943 GFCIs
Reset Type
Manual
Wiring Method
Back
Receptacle Type
Duplex
Features
Auto-Ground Clip, Button Colors Match the Device Face, Feed-Thru Wiring Configuration allows GFCI to Protect Downstream Receptacles, Ground Screw has a Back Wire Clamp, Patented Shutter System Helps Prevent Improper Insertion of Foreign Objects, Tri-Drive Screws, Two Back Wire Holes per Terminal
UL 94 Flammability Rating
V-2
Number of Gangs
1
For Location
Outdoor
Self Testing
Yes
Wire Connection Type
Screw Terminals
Visual Indicator Lights
GFCI On
Voltage Rating
125V AC
Market
Commercial, Residential
Maximum Operating Temperature
66 Degrees C
Includes
TP26 Wall Plate
Contact Material
Brass
Grade
Federal Specification
Minimum Operating Temperature
-35 Degrees C
Number of Outlets
2
Resistance Properties
Impact Resistant, Tamper Resistant, Weather Resistant
Mount Type
Flush
Polarized
No
NEMA Enclosure Rating
5
Shrouded
No
Number of Wall Plates Included
0
IP Rating
Not Rated
Hub Type
Feed Through
AFCI
No
Surge Protection
No
Flange Type
Non-Flanged
Series
Radiant(R)
Phase
Single
Status Indicator Lights
GFCI On
Cover Type
No Cover

Description

Duplex GFCI Receptacle, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color White, Housing Material Thermoplastic, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Resistance Properties Impact Resistant, Tamper Resistant, Weather Resistant, Standards Conforms to NEMA WD-1 and WD-6, CSA-C22.2 No. 144 GFCIs, cULus Listed File Number E42190, Standard CSA-C22.2 No. 42, Standard UL 498, UL Listed, UL943 GFCIs, Voltage Rating 125V AC
