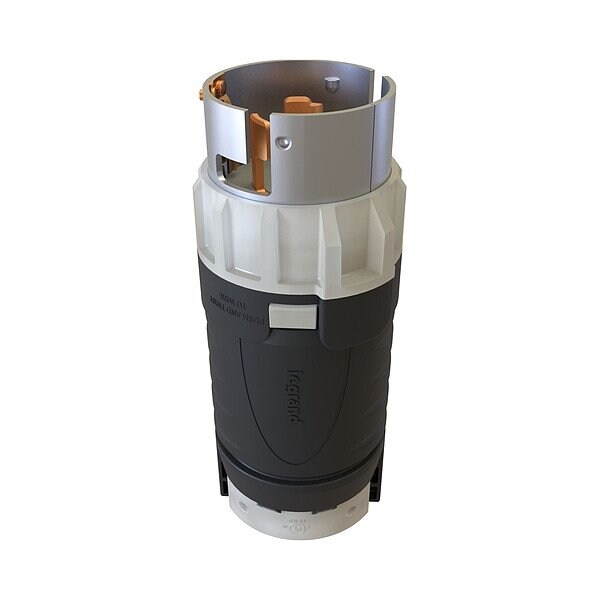

Locking Plug, 50 A, Black, Nylon
- Mfr # CS8165C
- Zoro # G621827960
product price:Â
$
106.99
/ea
Sold in multiples of 10 for $1,069.90
Free Shipping & Returns
Key Features
Blade Material
Brass
Grade
Federal Specification
Minimum Operating Temperature
-40 Degrees C
Maximum Wire Size
4 AWG
Maximum Operating Temperature
75 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CS8165C
- Zoro #
- G621827960
- UPC #
- 785007442533
- Country of Origin
- Mexico
- Blade Material
- Brass
- Grade
- Federal Specification
- Minimum Operating Temperature
- -40 Degrees C
- Maximum Operating Temperature
- 75 Degrees C
- Standards
- CSA Certified, Federal Specification WC596, UL 498, UL Listed, UL94 HB
- Market
- Industrial
- UL 94 Flammability Rating
- HB
- Wire Connection Type
- Screw Terminals
- Voltage Rating
- 480V AC
- For Environment
- Industrial
- NEMA Plug Configuration
- Non-NEMA
- Housing Material
- Nylon
- Resistance Properties
- Corrosion Resistant
- Phase
- Three
- Series
- TURNLOK(R)
- Item
- Locking Plug
- Power and Ground Indicating Light
- No
- Housing Color
- Black
- Shrouded
- Yes
- Number of Blades
- 4
- Current Rating
- 50 A
- Midget Locking
- No
- Number of Poles
- 3
- Grounding
- Grounded
Description
Locking Plug, Current Rating 50 A, Housing Color Black, Housing Material Nylon, NEMA Plug Configuration Non-NEMA, Number of Blades 4, Number of Poles 3, Phase Three, Resistance Properties Corrosion Resistant, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.125 in, For Minimum Cable Diameter 0.68 in, Grade Federal Specification, Grounding Grounded, Horsepower Rating Not Applicable, IP Rating Not Applicable, Market Industrial
