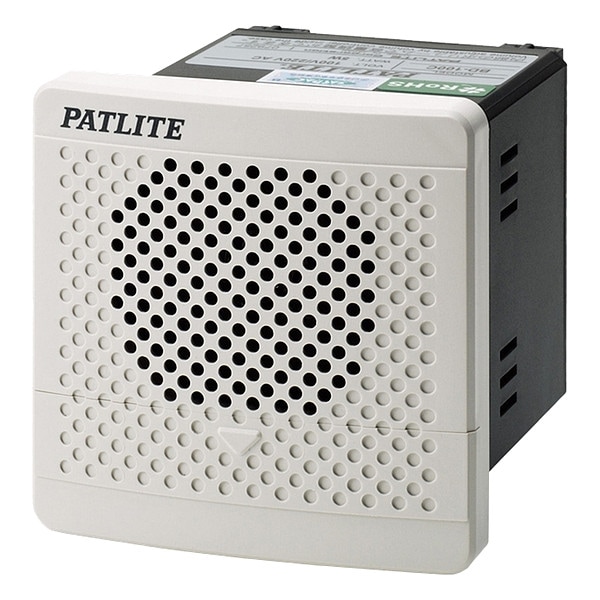

Audible Alarms

  • Mfr # BDV-15JF-J

  • Zoro # G412476292


product price: $508.99
/ea
Free Shipping & Returns

Key Features

Color
Light Gray
Voltage
12 to 24V DC
Standards
CE, MPEG Layer-3 Audio Coding Technology, RoHS
Features
Includes Binary Input as a Standard Option for Selecting upto 15 Messages, Several Playback Modes are Available for Various Applications, Supports Input Selection using NPN Open-Collector Transistor, The use of an SD Card Allows Message Changes without Dis-Mounting the Device
Alarm Volume @ 1 m - Maximum
87 dB
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BDV-15JF-J
Zoro #
G412476292
UPC #
-
Country of Origin
Japan

Dimensions

Overall Width
80 mm
Overall Depth
94 11/16 mm
Overall Length
80 mm

Details

Item
Audible Alarm
Color
Light Gray
Voltage
12 to 24V DC
Standards
CE, MPEG Layer-3 Audio Coding Technology, RoHS
Features
Includes Binary Input as a Standard Option for Selecting upto 15 Messages, Several Playback Modes are Available for Various Applications, Supports Input Selection using NPN Open-Collector Transistor, The use of an SD Card Allows Message Changes without Dis-Mounting the Device
Alarm Volume @ 1 m - Maximum
87 dB
Number of Sound Patterns
0
Wattage
4 W
Includes Mounting Hardware
Mounting Hardware Included
Sound Continuity
Pulse
Product Type
Alarm
Operating Current
0.167 A @ 12-24V DC
Mounting Style
Flush Mount
Operating Temperature - Maximum
50 Degrees C
Operating Temperature - Minimum
-10 Degrees C
Connection Type
Screw Terminal
Power Source
Wire
IP Rating
IP54
Sound Style
Tone
Vibration
No Vibration
Volume Selection
Selectable Volume
Control Protocol
Direct Wire
For Location
Indoor, Outdoor
Material
ABS
Operating Voltage
12 to 24V DC

Description

Features Includes Binary Input as a Standard Option for Selecting upto 15 Messages, Several Playback Modes are Available for Various Applications, Supports Input Selection using NPN Open-Collector Transistor, The use of an SD Card Allows Message Changes without Dis-Mounting the Device, Standards CE, MPEG Layer-3 Audio Coding Technology, RoHS, Color Light Gray, Audible Alarm
