Shop WERMA

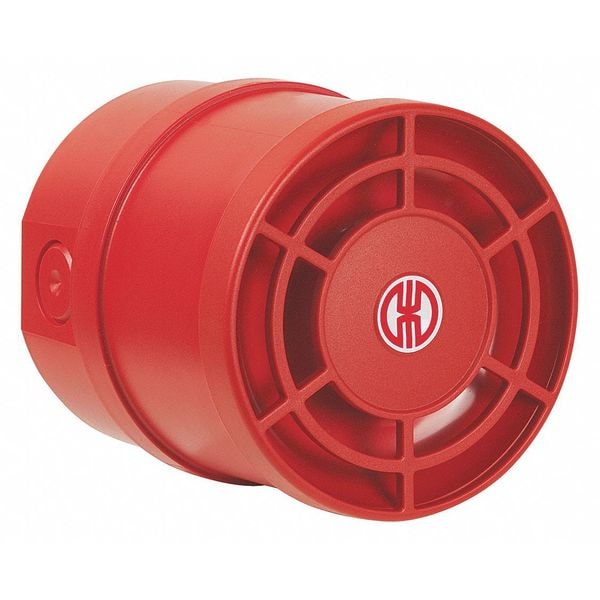

Multi-Tone Sounder, Buzzer, Continuous/Pulse, 9 to 28V DC, 115 dB, Polycarbonate/ABS Blend, Red

  • Mfr # 14015050
  • Zoro # G6030363
product price:
$
109.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Polycarbonate/ABS Blend
Mounting
Surface, Wall
Diameter
3.9375 in
Audible Alarm Type
Buzzer
Standards
CE, EAC, RoHS, UKCA, WEEE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
14015050
Zoro #
G6030363
UPC #
-
Country of Origin
China

Dimensions

Diameter
3.9375 in
Depth
3.9375 in
Width
3.9375 in
Height
4.3125 in
Overall Depth
110 mm
Overall Diameter
100 mm
Fits Chest Size
32 Tones Adjustable for Various Applications

Details

Item
Multi-Tone Sounder
Housing Material
Polycarbonate/ABS Blend
Mounting
Surface, Wall
Color
Red
Audible Alarm Type
Buzzer
Voltage
9V DC to 28V DC
Standards
CE, EAC, RoHS, UKCA, WEEE
Indoor/Outdoor
Indoor, Outdoor
Decibels
115 dB
Sound Pattern
Continuous/Pulse
Operating Temp.
-40 Degrees to 158 Degrees F
Housing Color
Red
Flashes per Minute
0
Visual Indicator Type
No Visual Indicator
Features
32 Tones Adjustable for Various Applications
Vibrating
No
Power Source
Wire
Material
ABS, Polycarbonate
Wattage
0.12 W
Rating
IP 65
Product Type
Tone Generator
For Location
Indoor, Outdoor
Sound Style
Tone
Alarm Volume @ 10 ft - Maximum
115 dB
IP Rating
IP65
Sound Principle
Resonating
Vibration
No Vibration
Control Protocol
Direct Wire
Operating Temperature - Minimum
-40 Degrees C
Connection Type
Screw Terminal
Alarm Volume @ 1 m - Maximum
115 dBA
Operating Current
0.120 A
Includes Mounting Hardware
No Mounting Hardware
Mounting Style
Surface Mount
Alarm Volume @ 1 m - Minimum
115 dB
Number of Sound Patterns
32
Alarm Volume @ 10 ft - Minimum
115 dB
Sound Continuity
Continuous, Pulse
Volume Selection
Fixed Volume
Operating Temperature - Maximum
70 Degrees C
Operating Voltage
9 to 28V DC
Power Source - TS Only
Wire
Power Source - old
Wire
Shell Material
ABS, Polycarbonate
Wire Color
Red

Description

WERMA 14015050 is a red multi-tone sounder with a buzzer-style audible signal for audible signaling applications. It operates on 9 to 28V DC direct wire power and produces a 115 dB alarm output. The unit features 32 selectable tones with continuous or pulse sound patterns in a surface-mount, wall-mount housing made from polycarbonate/ABS blend.

Key Features:

  • Audible alarm type: Buzzer
  • Sound output: 115 dB
  • Sound patterns: 32 selectable tones
  • Sound continuity: Continuous, pulse
  • Operating voltage: 9 to 28V DC
  • Connection type: Screw terminal
  • Control protocol: Direct wire
  • Mounting: Surface, wall
  • Housing material: Polycarbonate/ABS blend
  • Housing color: Red
  • Ingress protection: IP65
  • Operating temperature: -40 degrees C to 70 degrees C
  • Operating current: 0.120 A
  • Visual indicator type: No visual indicator
  • Standards: Multiple applicable certifications
